32 43 010 Removing And Installing/Replacing Control Unit For Active Front Steering
Necessary preliminary work:
- Disconnect BATTERY EARTH LEAD .
- RELEASE LEFT FRONT SEAT and tilt towards rear.
- Remove front left DOOR SILL COVER STRIP .
- Remove footwell SIDE TRIM PANEL on A-pillar.
- Remove cover of bass speaker at left front.
Fold back front left carpet to one side.

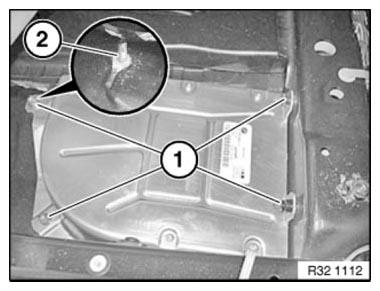

Unscrew nuts (1).
Tightening torque: 32 43 1AZ .
Installation note:
Secure grounding strap (2) to screw fastening point.

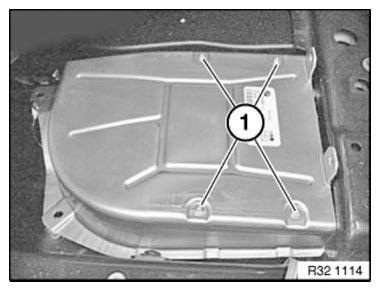

Release screws (1).
Tightening torque: 32 43 2AZ .

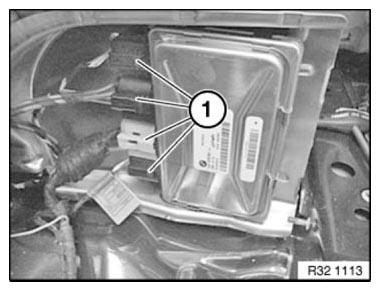

Disconnect plug connections (1) and remove control unit.
After installation:
- Replacement only: Carry out PROGRAMMING/ENCODING .
- ADJUSTMENT FOR ACTIVE STEERING .
