61 31 134 Removing and installing/replacing USB audio interface connecting socket
Necessary preliminary tasks:
- Remove REAR CENTER CONSOLE TRIM

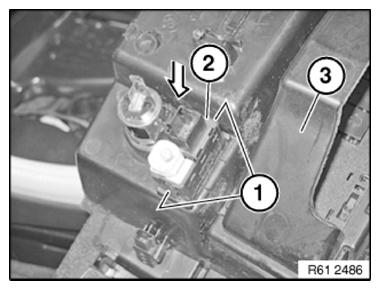

Unlock retaining lugs (1).
Push out connecting socket (2) from storage compartment (3) in direction of arrow.
Installation note:
- Retaining lugs (1) must not be damaged
- Make sure connecting socket (2) is correctly seated in storage compartment (3)
