12 41 020 Removing and installing/replacing starter (N63)
Necessary preliminary tasks:
- Switch off ignition.
- Disconnect BATTERY NEGATIVE LEAD .
- Remove right ENGINE SUPPORT ARM .

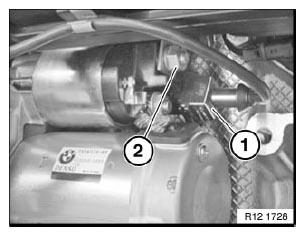

Unlock connector (1) and remove.
Slacken nut (2).
Tightening torque 12 42 2AZ .
Detach starter positive cable.

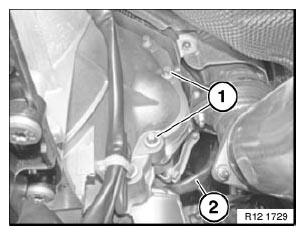

Release screws (1).
Tightening torque 12 41 1AZ .
Disengage cable (2) from holder.
Pull out starter in direction of travel, feed out and remove.
Installation note:
When replacing the starter, convert cable holder for cable (2).
Installation note:
Check starter pinion and starter ring gear for damage. If necessary, replace damaged components.
Reassemble the vehicle.
Only during starter replacement and on vehicles with MSA (automatic engine start-stop function):
- Use BMW diagnosis system to reset the starter counter.
