13 62 650 Replacing pulse sensor for camshaft (N57 D30 O/T 1)
Necessary preliminary tasks:
- Read out the fault memory of the DDE control unit.
- Switch off ignition.
- Remove INTAKE SILENCER HOUSING .
- Remove ACOUSTIC COVER at rear.
- Remove sound insulation on injectors.

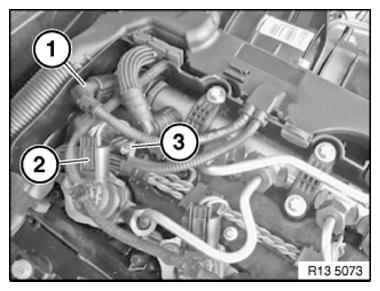

Detach plug from pressure regulator (1).
Detach the connector (2) from injector for cylinder 6.
Unlock plug (3) from pulse generator and detach.

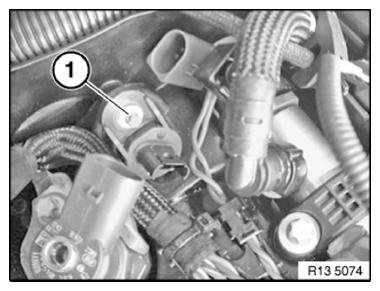

Release screw (1).
Tightening torque 13 62 1AZ .
Remove pulse sensor.
Installation note:

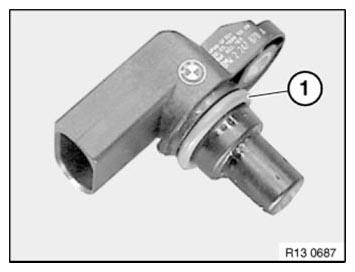

Replace sealing ring (1). Apply a thin coat of lubricant to sealing ring for installation.
Installation note:
Reassemble the vehicle.
Delete fault memory.
Check function of DDE.
