2011 BMW 335is 2D Coupe, StandardFACTORY OEM SERVICE PROCEDURE

61 13... Special tools for wiring harness repairs

Special tools required:

Repair range, vehicle electrical system

Release and press-out tool

Special tool 61 0 300

Handling:

OPENING PLUG HOUSINGS AND REMOVING CONTACTS of different plug systems

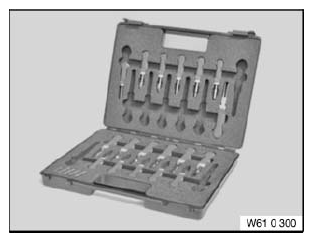

Fig 1: Identifying Special Tools For Wiring Harness Repairs

Courtesy of BMW OF NORTH AMERICA, INC.

Cutting to length and stripping insulation from cables

Handling:

CUTTING CABLES TO LENGTH AND STRIP INSULATION

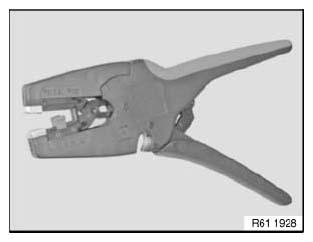

Fig 2: Identifying Crimping Tool
Courtesy of BMW OF NORTH AMERICA, INC.

Crimping stop parts (small contacts)

Special tool 61 4 320
1. Tool without crimping head
2. Crimping head (STRIPPING INSULATION AND CUTTING FIBRE-OPTIC CABLES TO LENGTH)
3. Crimping head (CRIMPING FIBRE-OPTIC CABLE CONTACTS)
4. Crimping head (CRIMPING MQS CONTACTS)
5. Crimping head (CRIMPING MPQ CONTACTS)
6. Replacement blade (face-cutting fibre-optic cables)
7. Replacement blade with tool (insulation stripping unit)
8. Universal crimping head

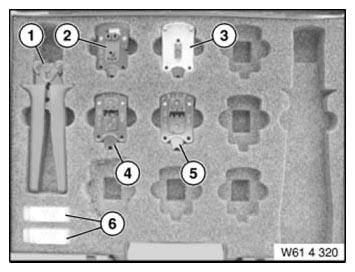

  Fig 3: Identifying Crimping Stop Parts
  Courtesy of BMW OF NORTH AMERICA, INC.

Crimping stop parts (large contacts)

Special tool 61 0 200 (crimping set)
Special tool 61 0 210 (matrix set
Special tool 61 0 220 (matrix set SLK 2.8)
Special tool 61 0 230 (matrix set MAK 8/DFK4)

Handling:

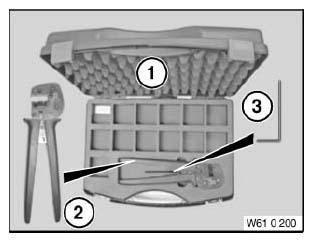

Fig 4: Identifying Crimping Tool Stop Parts

Courtesy of BMW OF NORTH AMERICA, INC.

Crimping antenna elbow plugs

Special tool 61 9 041 (pliers)
Special tool 61 9 044 (matrix)

Handling:

Antenna elbow plug on radio receiver

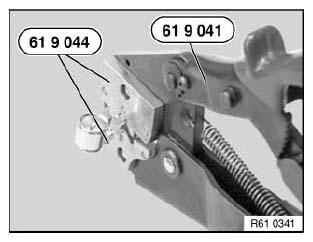

Fig 5: Identifying Special Tool (Pliers And Matrix)
Courtesy of BMW OF NORTH AMERICA, INC.

Repair kit for ignition cables and for crimping fan connector receptacles 4 mm 2

Special tool 12 1 080

Handling:

CRIMPING STOP PARTS (CONTACTS)

Fig 6: Identifying Repair Kit For Ignition Cables And Crimping Fan Connector
Courtesy of BMW OF NORTH AMERICA, INC.

Repairing ribbon cables

Special tool 61 1 190

Handling:

REPAIRING RIBBON CABLES

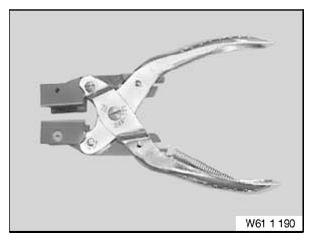

Fig 7: Identifying Special Tool (61 1 190)
Courtesy of BMW OF NORTH AMERICA, INC.
