4100... Frame Alignment Control Body Dimensions
Dimensions in mm.
Measurement tolerances:
- ≤ 1000 mm ± 1.5 mm
- ≥ 1000 mm ± 2.5 mm
The control points shown serve to check the body and the straightening attachment.

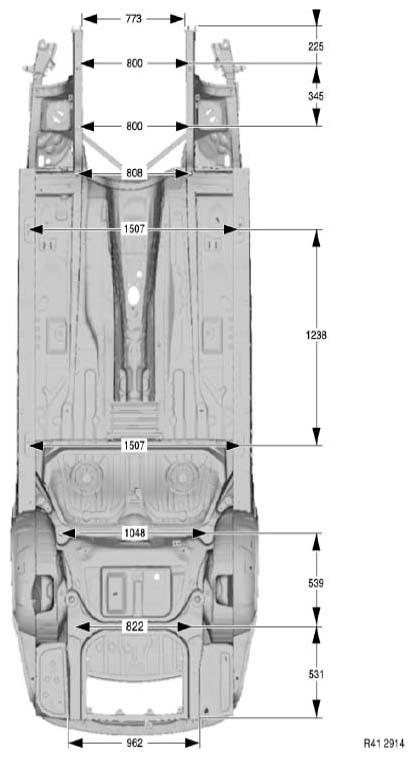

Under Body View 1

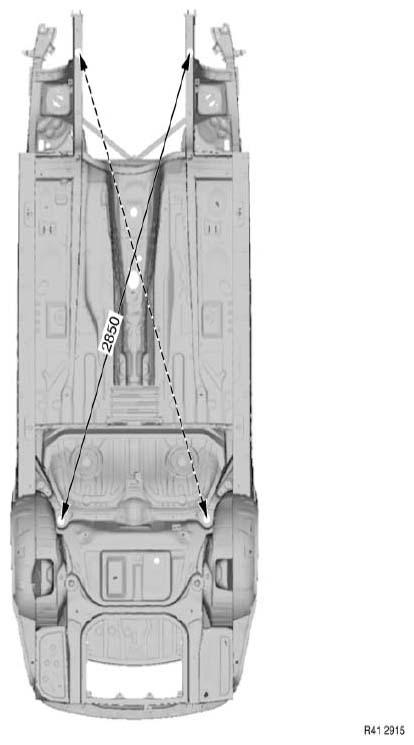

Under Body View 2

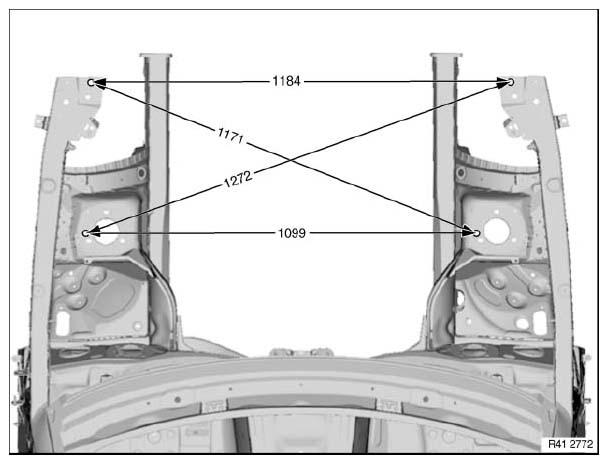

Top View, Front End
The specified dimensions refer to removed assemblies.

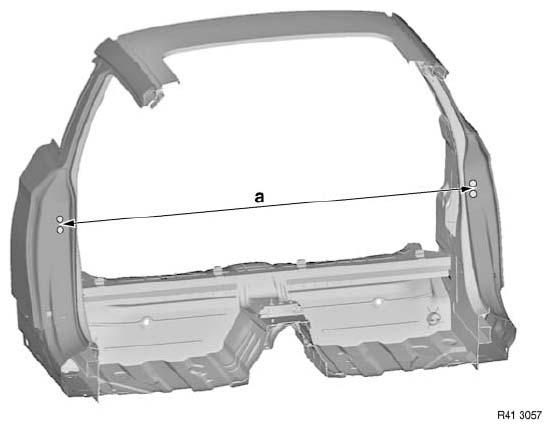

View, B-pillar (Saloon and Touring only)
Measurement a=1551 mm between screw-on points of door brakes.
View, B-pillar (Coupe only)
Measurement a=1543 mm between screw-on points of lock strikers.
