61 13... Butt connector for repairing a plug connection
Special tools required:
- Identify cause of damage (e.g. sharp-edged body components, faulty electrical loads, jammed mechanisms, corrosion caused by ingress of water, etc.).
- Read out fault memory
- Eliminate cause of damage.
- Disconnect battery negative terminal
- Make sure that no safety-related system according to circuit diagram (e.g. antilock braking system, active rear-axle kinematics, airbags, etc.) are influenced. Otherwise replace faulty wiring harness or use repair cable (sourcing reference: BMW Parts Department)
- Carry out function test and read out fault memories again
- Eliminate new faults if applicable and clear fault memories
Special tools:
- Special tool 61 9 040

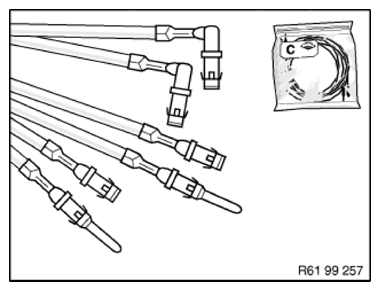

Choose repair kit.
Example: Repair kit, circular connector system D 2.5.
Remove following parts:

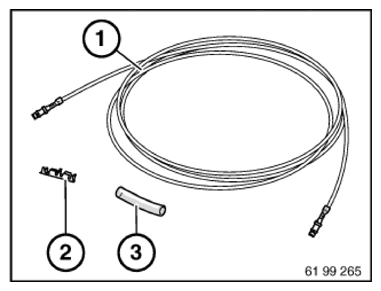

- Pre-packaged end of cable with requisite wire cross-section
- Crimp connector for selected wire cross-section
- Shrink-fit hose
Open secondary lock on housing.

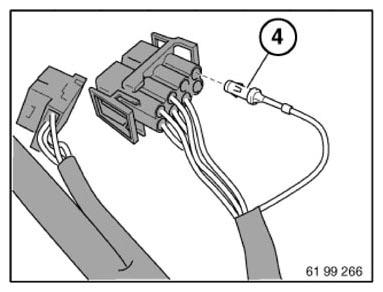

Mark damaged contact (4) with socket number of housing and press it out of housing using appropriate special tool contained in special tool set 61 0 300 ).
See repair instructions:
OPENING PLUG HOUSINGS AND REMOVING CONTACTS of different plug systems
