61 13... Special tools for wiring harness repairs
Special tools required:

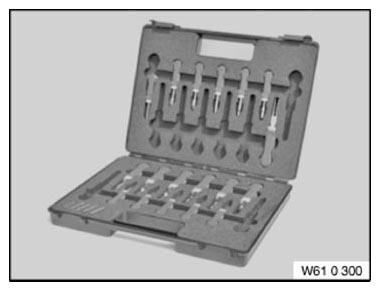

Release and press-out tool:
- Special tool 61 0 300
- Special tool 61 0 400 (MINI N12/N14)
Handling:
- OPENING PLUG HOUSINGS AND REMOVING CONTACTS of different plug systems
Cutting to length and stripping insulation from cables:
Handling:
Crimping stop parts (small contacts):

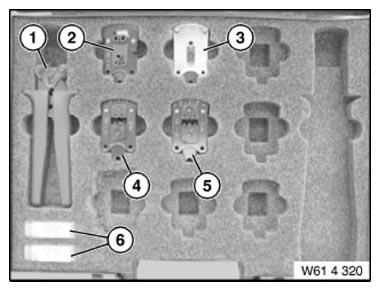

- Special tool 61 4 320
- Tool without crimping head
- Crimping head (STRIPPING INSULATION AND CUTTING FIBRE-OPTIC CABLES TO LENGTH)
- Crimping head (CRIMPING FIBRE-OPTIC CABLE CONTACTS)
- Crimping head (CRIMPING MQS CONTACTS)
- Crimping head (CRIMPING MPQ CONTACTS)
- Replacement blade (face-cutting fibre-optic cables)
- Replacement blade with tool (insulation stripping unit)
- Universal crimping head
Crimping stop parts (large contacts):

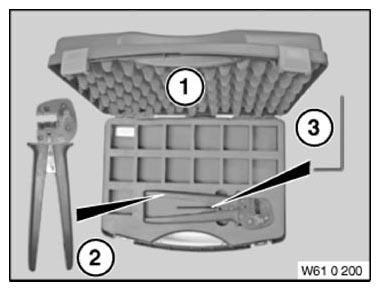

- Special tool 61 0 200 (crimping set)
- Special tool 61 0 210 (matrix set
- Special tool 61 0 220 (matrix set SLK 2.8)
- Special tool 61 0 230 (matrix set MAK 8/DFK4)

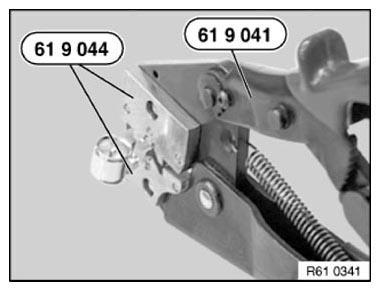

Crimping antenna elbow plugs:
Handling:
- Antenna elbow plug on radio receiver

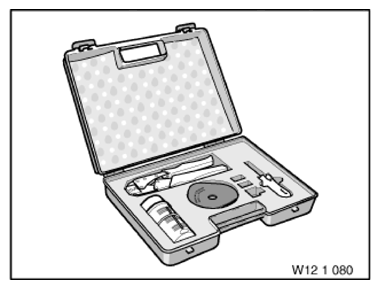

Repair kit for ignition cables and for crimping fan connector receptacles 4 mm 2:
- Special tool 12 1 080
Handling:

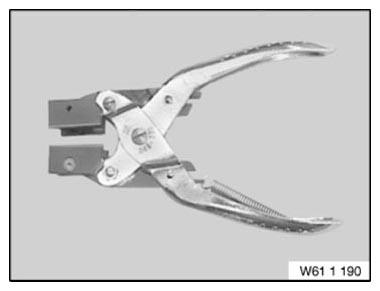

Repairing ribbon cables:
- Special tool 61 1 190
Handling:
