61 31 492 Replacing level switch for windscreen washer system
Necessary preliminary tasks:
- Release FLUID RESERVOIR FOR WINDSCREEN WASHER SYSTEM and pull out

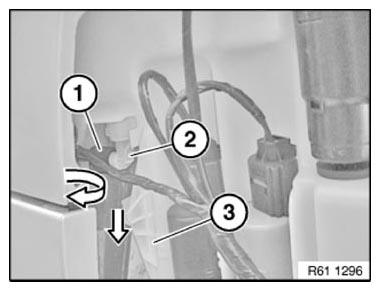

Disconnect plug connection (1).
Turn level switch for windscreen washer system (2) in direction of arrow and remove towards bottom from fluid reservoir for windscreen washer system (3).
