61 35 107 Removing and installing or replacing Junction Box electronics
Necessary preliminary tasks:
- Disconnect BATTERY NEGATIVE LEAD
- Remove TRIM FOR INSTRUMENT PANEL , bottom right
- Remove FOOTWELL SIDE TRIM PANEL ON A-PILLAR on right

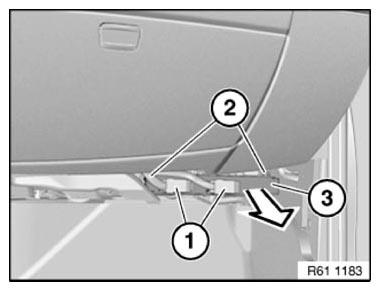

Disconnect plug connection (1).
Release screws (2).
Pull junction box electronics (3) in direction of arrow out of passenger compartment fuse box.
Disconnect plug connection behind and remove junction box electronics (3).
Replacement:
- Carry out VEHICLE PROGRAMMING/CODING
- Delete transport mode
