Special tools required:

NOTE: The repair range IV for vehicle electrical system contained the required special tools and individual parts for retrofitting and repair work with the aid of fan connectors.

Special tools:

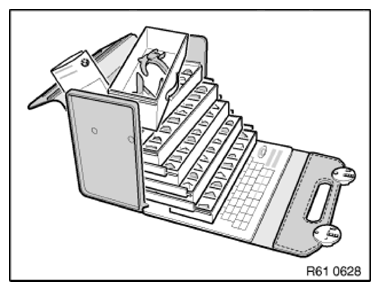

Fig 1: Identifying Special Tools Kit

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 61 9 040

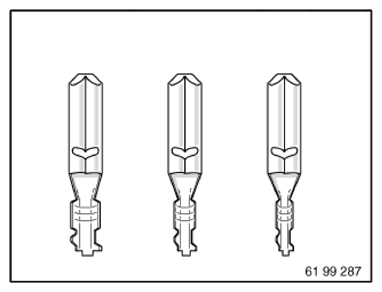

Choose contact sleeve (up to 4 mm² ) in accordance with wire cross-section.

Fig 2: Identifying Comb Connector Contact Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Alternatively:

Choose contact sleeves (up to 2.5 mm 2) for comb connectors.

Fig 3: Identifying Comb Connector Contact Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Cut through wire loop in wiring harness at established point.

Strip insulation from both wire ends.

See repair instructions

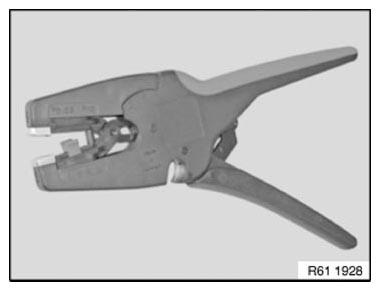

CUTTING TO LENGTH AND STRIPPING INSULATION FROM CABLES

Fig 4: Identifying Stripping Tool

Courtesy of BMW OF NORTH AMERICA, INC.

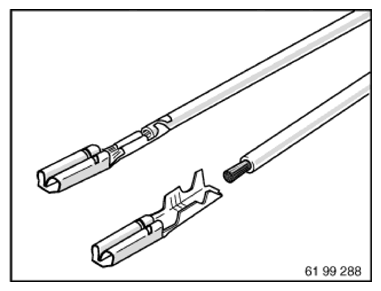

Crimp contact sleeves on both wire ends.

See repair instructions

CRIMPING ON STOP PARTS

NOTE: If using repair kit for contact sleeves, refer to repair instructions:

BUTT CONNECTOR FOR REPAIRING A PLUG CONNECTION .

Fig 5: Identifying Connector Crimping Parts

Courtesy of BMW OF NORTH AMERICA, INC.

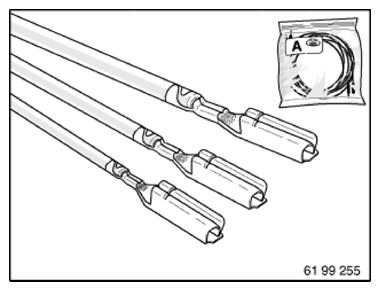

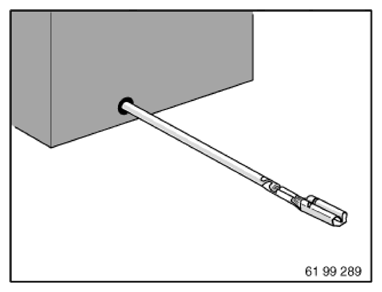

Crimp connecting cable for retrofitting likewise with contact sleeve.

Fig 6: Identifying Crimp Cable

Courtesy of BMW OF NORTH AMERICA, INC.

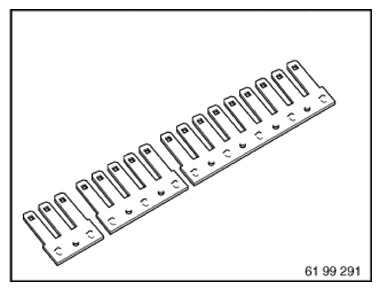

Cut required number of poles to length for comb connectors.

Fig 7: Identifying Comb Connectors Poles

Courtesy of BMW OF NORTH AMERICA, INC.

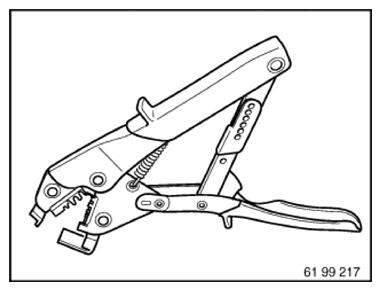

Special tool 61 9 041 (hand pliers) in conjunction with 61 9 042 (matrix) are used for pushing contact sleeves onto comb connectors.

See repair instructions

SPECIAL TOOLS FOR WIRING HARNESS REPAIRS .

Fig 8: Identifying Special Tool (61 9 041)

Courtesy of BMW OF NORTH AMERICA, INC.

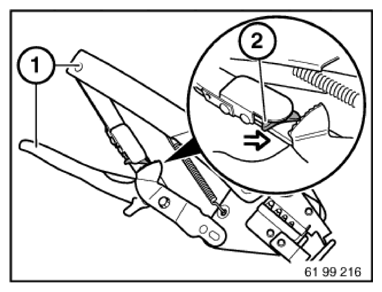

Unlock special tool 61 9 041 :

Squeeze grips (1) lightly and push release lever (2) in direction of arrow.

Or:

Compress handles until limit position, hand pliers unlock automatically.

Fig 9: Pressing Hand Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

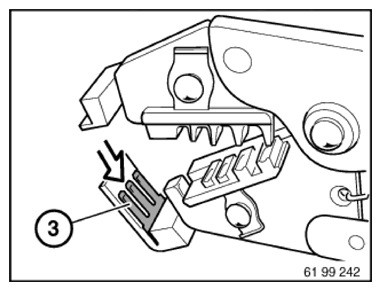

Insert prepared comb connectors (3) in special tool 61 9 041 /61 9 042 .

Fig 10: Inserting Comb Connectors In Special Tool (61 9 041)

Courtesy of BMW OF NORTH AMERICA, INC.

Attach wire with contact sleeve to comb connector.

Fig 11: Attaching Wire With Contact Sleeve To Comb Connector

Courtesy of BMW OF NORTH AMERICA, INC.

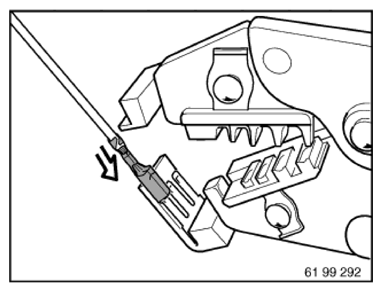

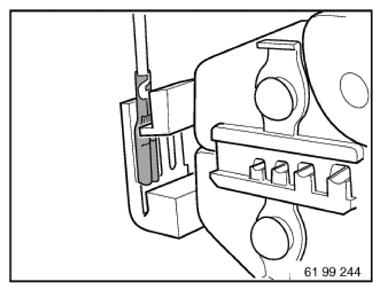

Press hand pliers together and slide on contact sleeve until limit position.

Fig 12: Pressing Hand Pliers

Courtesy of BMW OF NORTH AMERICA, INC.

When to See a Mechanic

Stop DIY work and contact a certified mechanic immediately if any of the following apply:

• You smell fuel, burning insulation, or see smoke.

• Brakes feel soft, pull hard to one side, or make grinding noises.

• The engine overheats, stalls repeatedly, or misfires under load.

• You are missing required tools, torque specs, or safe lifting equipment.

• You are not confident in the next step or safety outcome.

Safety Warning

61 13... Installing comb connector for retrofitting/repairs
