61 14... Removing and installing/replacing engine compartment B+ terminal
Necessary preliminary tasks:
- Remove COVER FROM ELECTRONICS BOX

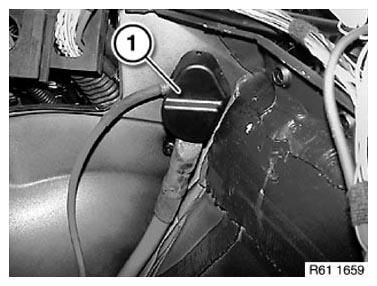

Unclip covers (1) and release nuts underneath. Tightening torque 61 12 4AZ .
Remove battery positive cables.

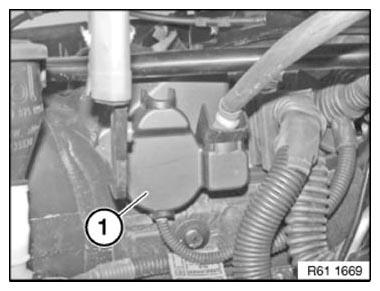

Unclip cover (1).

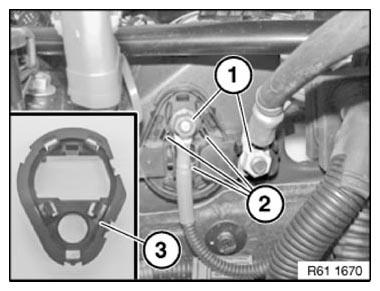

Unscrew nuts (1). Tightening torque 61 12 4AZ .
Remove battery positive cables.
Release locks (2) and remove frame (3) towards rear from B+ terminal.
Unclip B+ terminal and remove towards front.
Installation:
Make sure frame (3) engages correctly in B+ terminal.
