2009 BMW Z4 30i, StandardFACTORY OEM SERVICE PROCEDURE

61 13... Special tools for wiring harness repairs

Fig 1: Identifying Wiring Harness Repair Kit
G04727459Courtesy of BMW OF NORTH AMERICA, INC.

Release and press-out tool

  • Special tool 61 0 300
  • Special tool 61 0 400 (MINI N12/N14)
  • Special tool 61 1 100 (engine)

Handling:

Fig 2: Identifying Special Tool (61 0 300)
G04727496Courtesy of BMW OF NORTH AMERICA, INC.

Cutting to length and stripping insulation from cables

Wire stripper MultiStrip10

Handling:

Fig 3: Identifying Special Tool
G04727463Courtesy of BMW OF NORTH AMERICA, INC.

Crimping stop parts (small contacts) and butt connectors

  • Special tool 61 4 320
  1. Tool without crimping head
  2. Crimping head (STRIPPING INSULATION AND CUTTING FIBRE-OPTIC CABLES TO LENGTH)
  3. Crimping head (CRIMPING FIBRE-OPTIC CABLE CONTACTS)

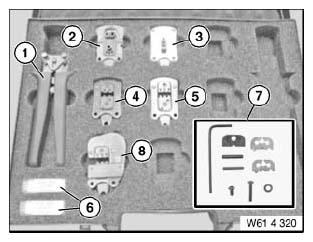

    Fig 4: Identifying Crimping Heads
    G04727498Courtesy of BMW OF NORTH AMERICA, INC.
  4. Crimping head (CRIMPING MQS CONTACTS)
  5. Crimping head (CRIMPING MPQ CONTACTS)
  6. Replacement blade (face-cutting fibre-optic cables)
  7. Replacement blade with tool (insulation stripping unit)
  8. Universal crimping head

Crimping stop parts (large contacts) and butt connectors

  • Special tool 61 0 200 (crimping set)
  • Special tool 61 0 210 (matrix set SLK 8)
  • Special tool 61 0 220 (matrix set SLK 2.8)
  • Special tool 61 0 230(matrix set MAK 8/DFK4)
  • Special tool 61 0 240 x (butt connector 4.0 - 6.0 mm2 )
Fig 5: Identifying Special Tools
G04727499Courtesy of BMW OF NORTH AMERICA, INC.
