61 35 107 Removing and installing or replacing Junction Box electronics
Necessary preliminary tasks:
- Disconnect battery negative lead
- Remove footwell side trim panel on A-pillar, right. See 41 35 010 REMOVING AND INSTALLING/REPLACING SIDE PANEL, FRONT LEFT OR RIGHT .
- Remove trim for instrument panel, bottom right. See 51 45 181 REMOVING AND INSTALLING/REPLACING BOTTOM RIGHT TRIM FOR INSTRUMENT PANEL .

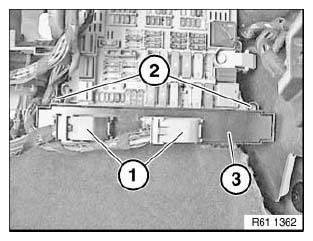

Disconnect plug connection (1).
Release screws (2) and remove junction box electronics (3) from holder.

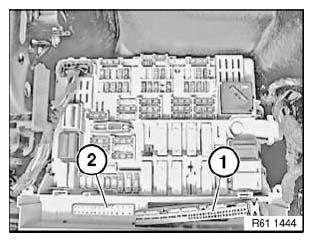

Disconnect plug connection (1).
Installation:
Make sure junction box electronics is correctly seated on plug connection (2) of holder.
Replacement:
Carry out vehicle programming/coding.
Delete transport mode.
