11 00 Removing and installing/replacing acoustic cover (N52/N52K): Notes
No steel screws/bolts may be used due to the threat of electrochemical corrosion.
A magnesium crankcase requires aluminium screws/bolts exclusively.
Aluminium screws/bolts must be replaced each time they are released.
Aluminium screws/bolts are permitted with and without
color coding (blue).
For reliable identification:
Aluminium screws/bolts are not magnetic.
Jointing torque and angle of rotation must be observed without fail (risk of damage) .

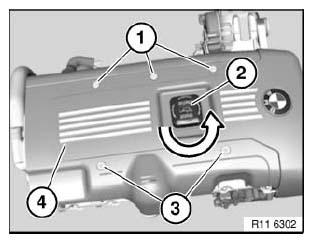

Unfasten screws (1 and 3).
If necessary, release oil cap (2) in direction of arrow.
Lift off acoustic cover (4)
