Control Units: Sim

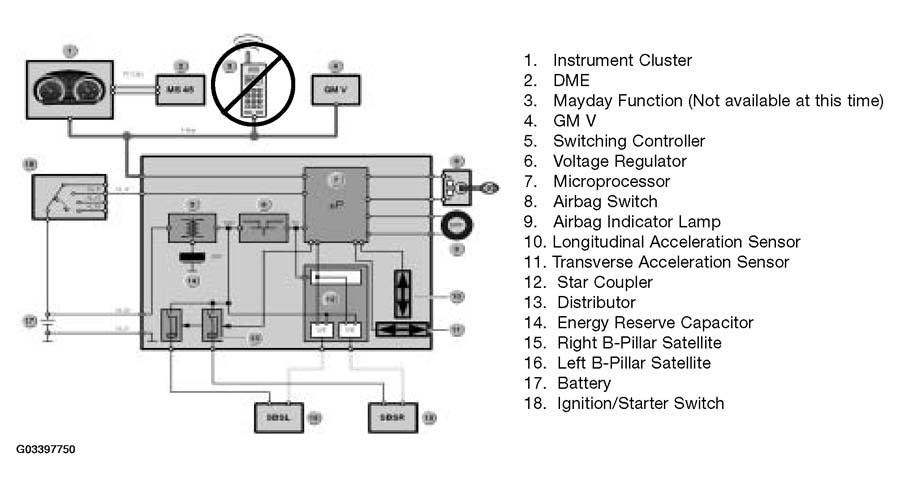

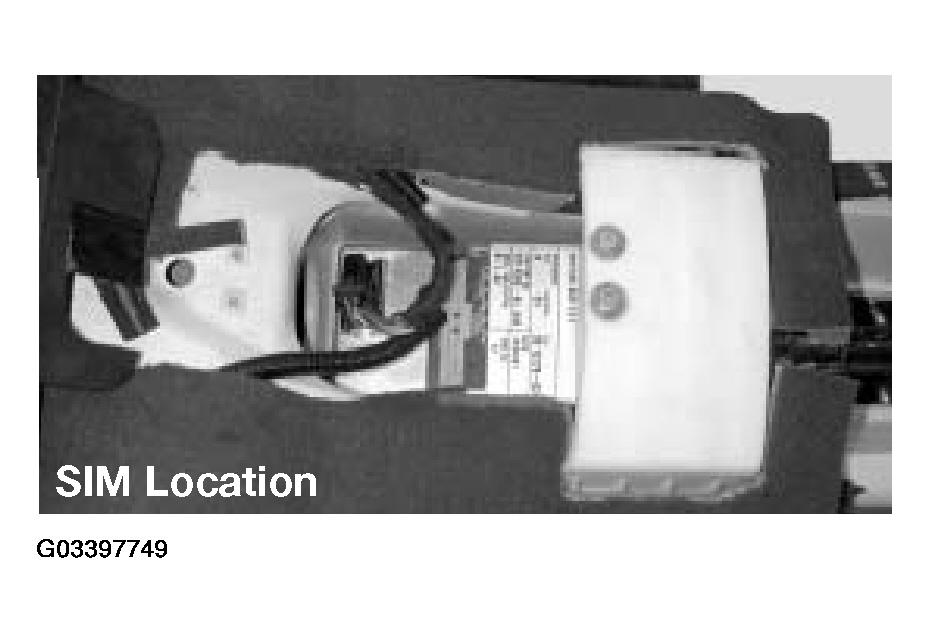

Located on the transmission tunnel behind the handbrake assembly, the Safety and Information Module (SIM) performs the following functions:
- Supplies voltage to the satellites and the pressure sensors (SBSL,SBSR and STVL,STVR) and supplies the voltage reserve for component activation.
- Bus Master functions for the optical bus communication system (byteflight ).
- Gateway functions between byteflight and K-bus.
- Triggers Emergency Call System (If Phone equipped)
- Signals the DME for deactivation of fuel pump.
- Signals the GM to switch on interior lights, hazard warnings and unlock the doors.
- Monitors the integrated acceleration sensors.
- Allows airbag activation.
- Allows BST activation.
