Modulated B
Output function to operate a component.

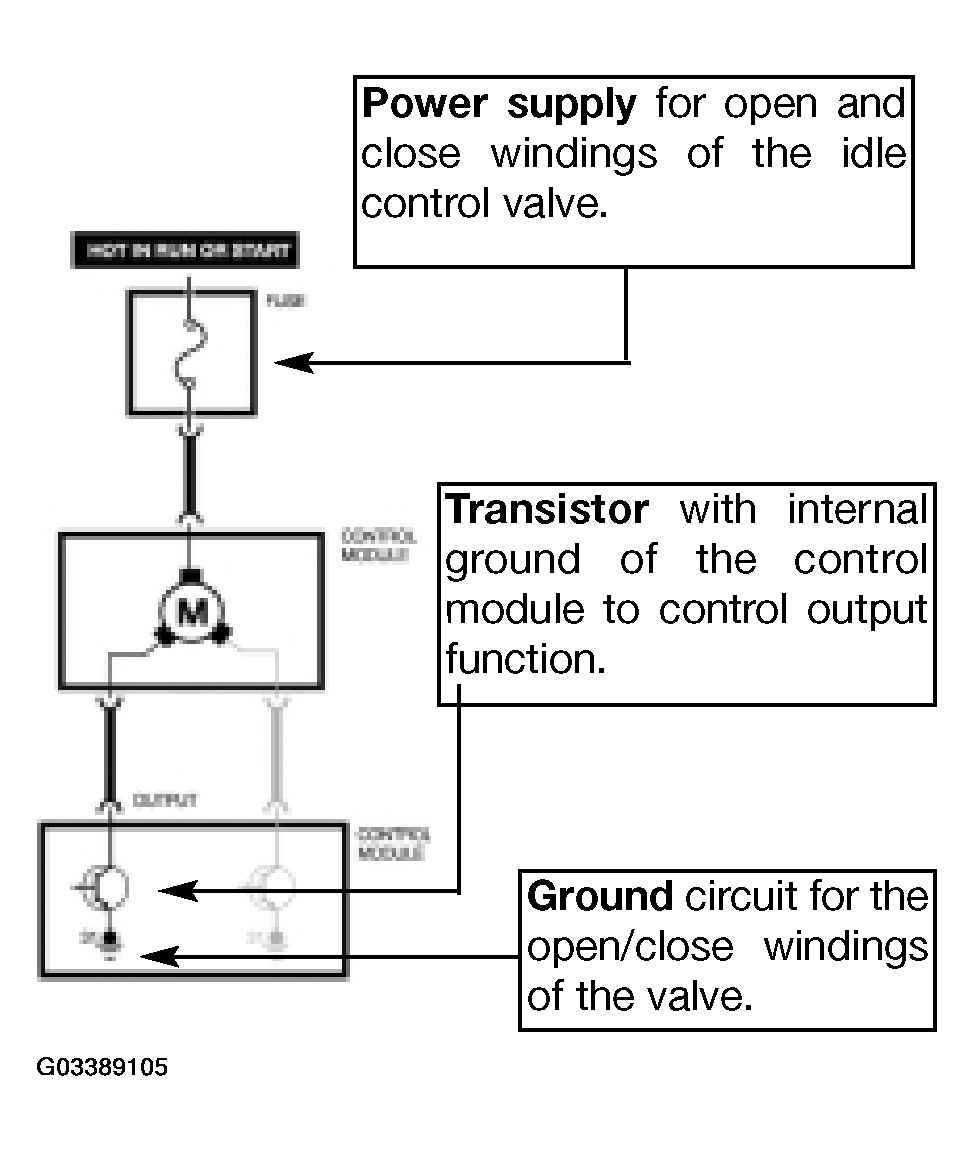

The idle valve motor is operated by the control module through internal activation of the transistor which provides a ground for the open winding of the valve.
The idle control valve is operated by regulation of the duty cycle at a specific frequency.
Typical Application of modulated B-
- Idle Control Motor.
- Purge Valve.
- Injector.
- Ignition Coil.
