61 13... Crimping stop parts
Crimping contact sleeves for 4 mm 2 comb connectors and ignition cable contacts:

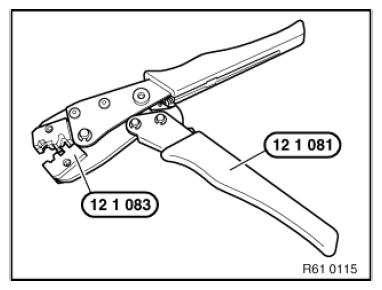

Use special tool kit 12 1 080 to attach ignition cable contacts and crimp 4 mm2 contact sleeves for comb connectors.
- 12 1 081 (hand pliers)
- 12 1 083 (nest)
See repair instructions:
SPECIAL TOOLS FOR WIRING HARNESS REPAIRS .

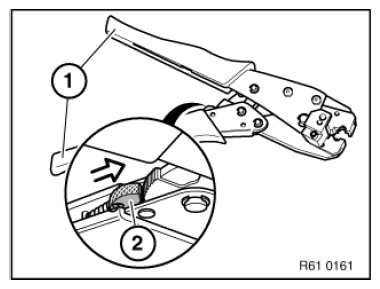

Release special tool 12 1 081:
Squeeze grips (1) lightly and push release lever (2) in direction of arrow.
Or:
Compress handles until limit position, hand pliers unlock automatically.

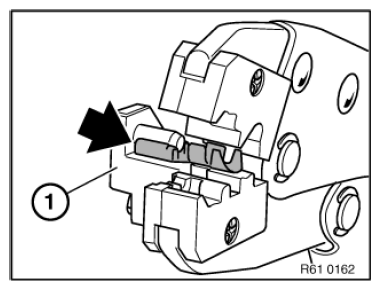

Place 4 mm2 contact sleeve in nest with anti-twist safeguard (1) as far as possible.

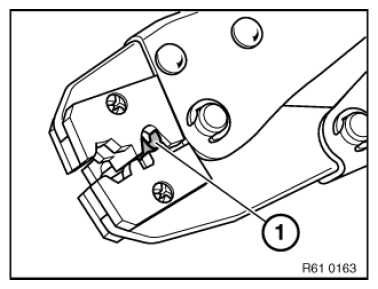

Preload contact by squeezing matrix in crimping tool. Grip contact (1) firmly only, do not crimp.
