61 13.. Unlocking and disconnecting different plug connections

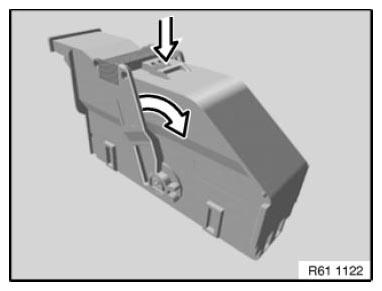

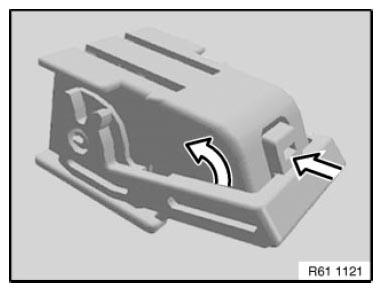

Press lock and open clamp in direction of arrow.
Disconnect plug connection.
Press lock and open clamp in direction of arrow.
Disconnect plug connection.

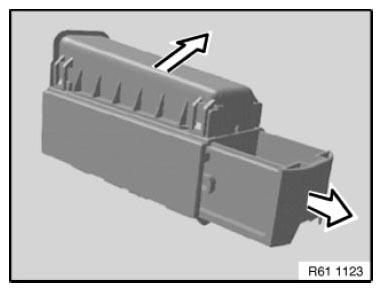

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

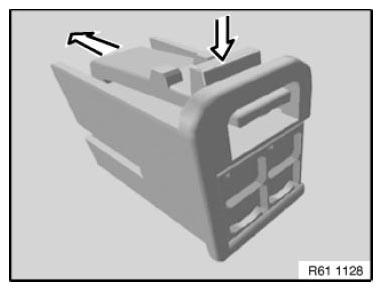

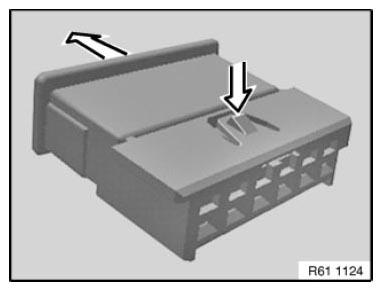

Press lock and disconnect plug connection in direction of arrow.

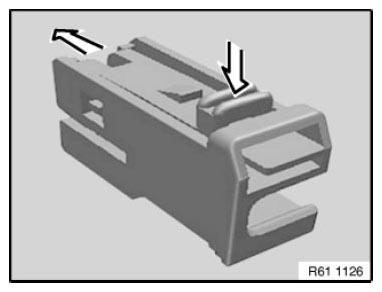

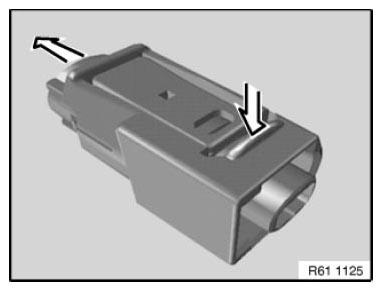

Press lock and disconnect plug connection in direction of arrow.

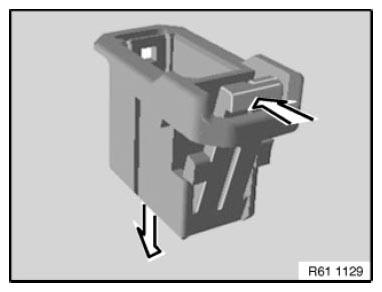

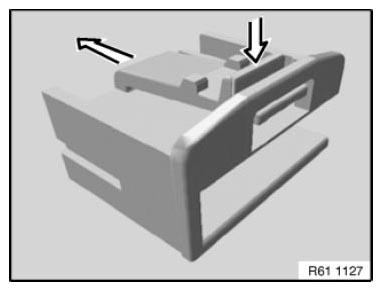

Press lock and disconnect plug connection in direction of arrow.
Press lock and disconnect plug connection in direction of arrow.
Press lock and disconnect plug connection in direction of arrow.
Press lock and disconnect plug connection in direction of arrow.

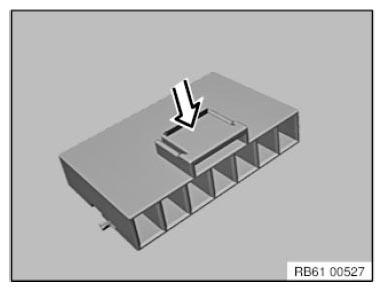

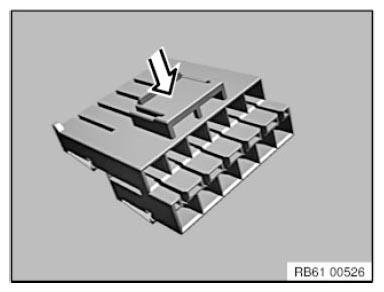

Press the lock and detach plug connection.
Press the lock and detach plug connection.

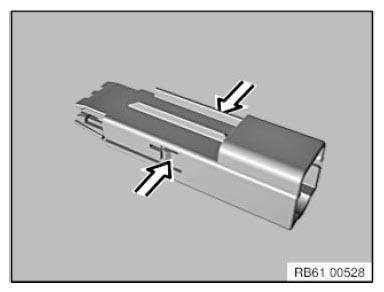

Press the lock on both sides and detach plug connection.

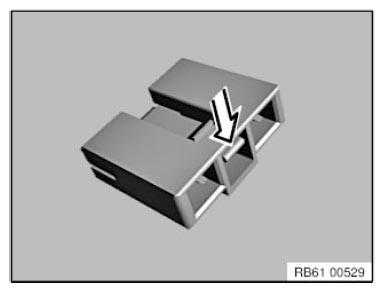

Press the lock and detach plug connection.
