61 13... Removing and installing/replacing OBD-II socket
Necessary preliminary tasks:

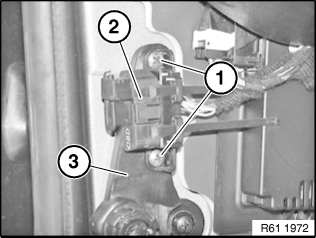

Release screws (1).
Remove OBD-II socket (2) from dashboard carrier (3).
Remove OBD-II socket cover (2) from OBD-II socket (1).

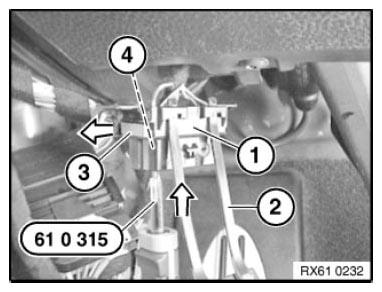

Unlock slide plate (3) with a suitable tool in direction of arrow.
Insert special tool 61 0 315 into OBD-II socket (1) in the direction of the arrow and press out the associated flat spring contact (4). Press remaining flat spring contacts out of OBD-II socket (1) with special tool 61 0 315 .
Installation note:
Pay attention to pin assignment of OBD-II socket (1).
Make sure flat spring contacts and slide plate (3) are correctly engaged and seated in OBD-II socket (1).
