High Pressure Fuel Injector Control Module (HDEV)
- Is there a Test Plan available for the HDEV? ________________________________
- Select Control Unit Functions (MED 9.2.1), Diagnosis Requests. Is there a status under the "Part Functions" column for observing the HDEV injector output? __________________
- What are the pin and connector numbers at the ECM (1 or 2) for the fuel injector output request? Connector _____________ Pins _______________
____________ ____________
____________ ____________
- Record the voltage value at one of these pins with:
The engine not running (ignition on). _________ V
Engine running at idle speed. __________ V
Rev engine up to 2000 RPM. __________ V
- What are the pin and connector numbers at the HDEV (1 or 2) for the output control of one of the fuel injectors? Connector ___________________ Pins ___________________
voltage ground
Ask the Instructor for assistance:
- Using the ground pin of this fuel injector at the HDEV, record the voltage value with:
The engine not running (ignition on). _____________ V
Engine running at idle speed. ____________ V
Rev engine up to 2000 RPM. ______________ V

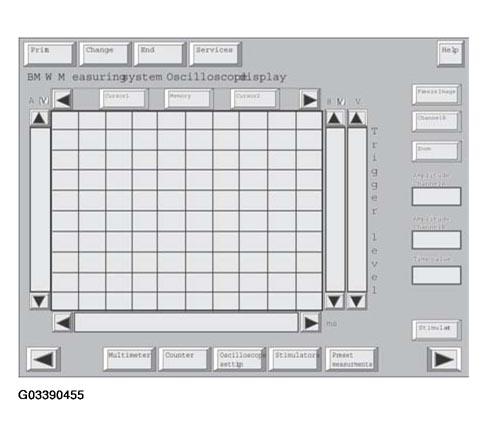

- Use the MFK 2 cable to observe a scope pat-
tern from the same pin and record that pattern on the right (engine at idle speed) .
Hint: Start out with a scope setting of 10Hz at 100 V for MFK 2 (Channel B) .
Increase the engine speed to 2000 RPM and observe pattern .
Courtesy of BMW OF NORTH AMERICA, INC.

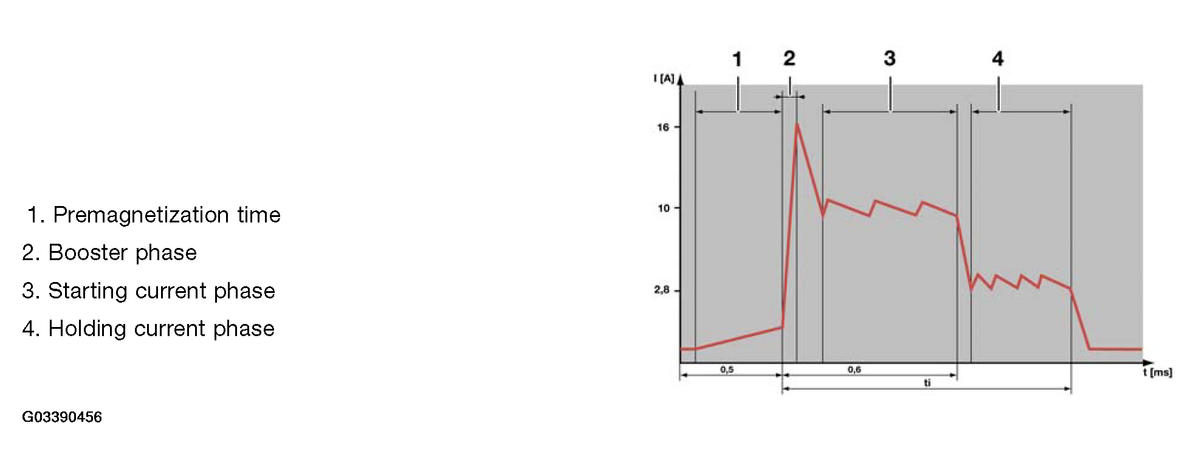

HDEV activation (sample shown to the right):
