2004 BMW 320i (E46) (CANADA) L6-2.2L M54FACTORY OEM SERVICE PROCEDURE
TCU ECE Funktionsprufung
E60_E65_E80: Operational Test Of Telephone ECE
Telephone Everest (TCU) platform ECE

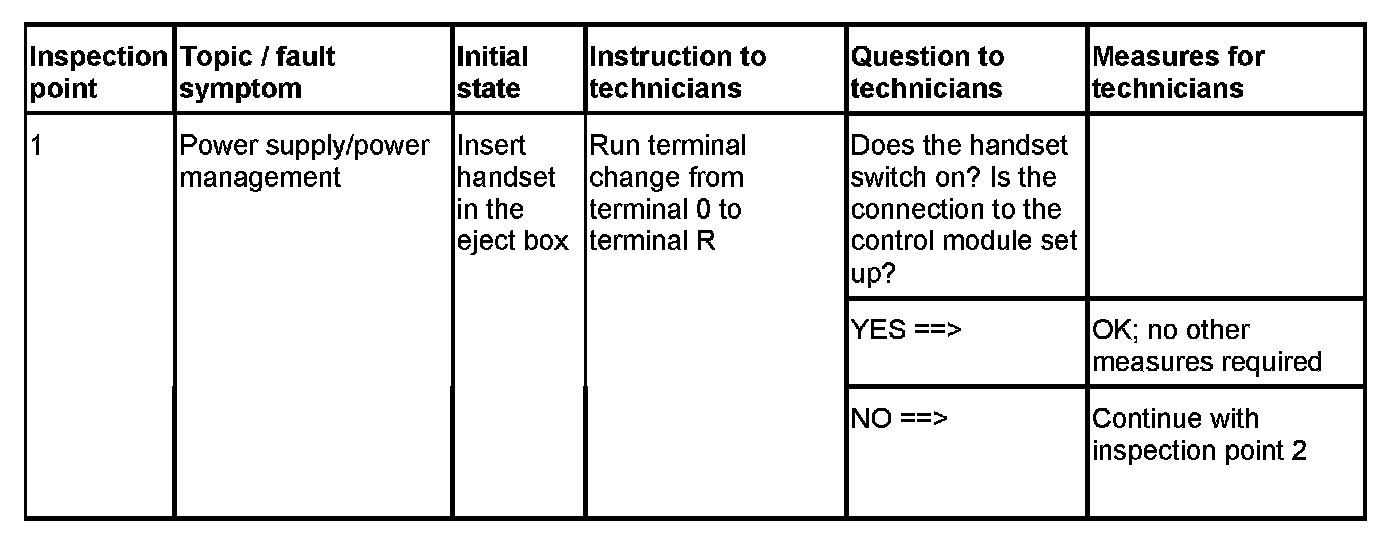

Inspection Point 1:
Inspection Point 2 - 9:
Inspection Point 10 - 14:

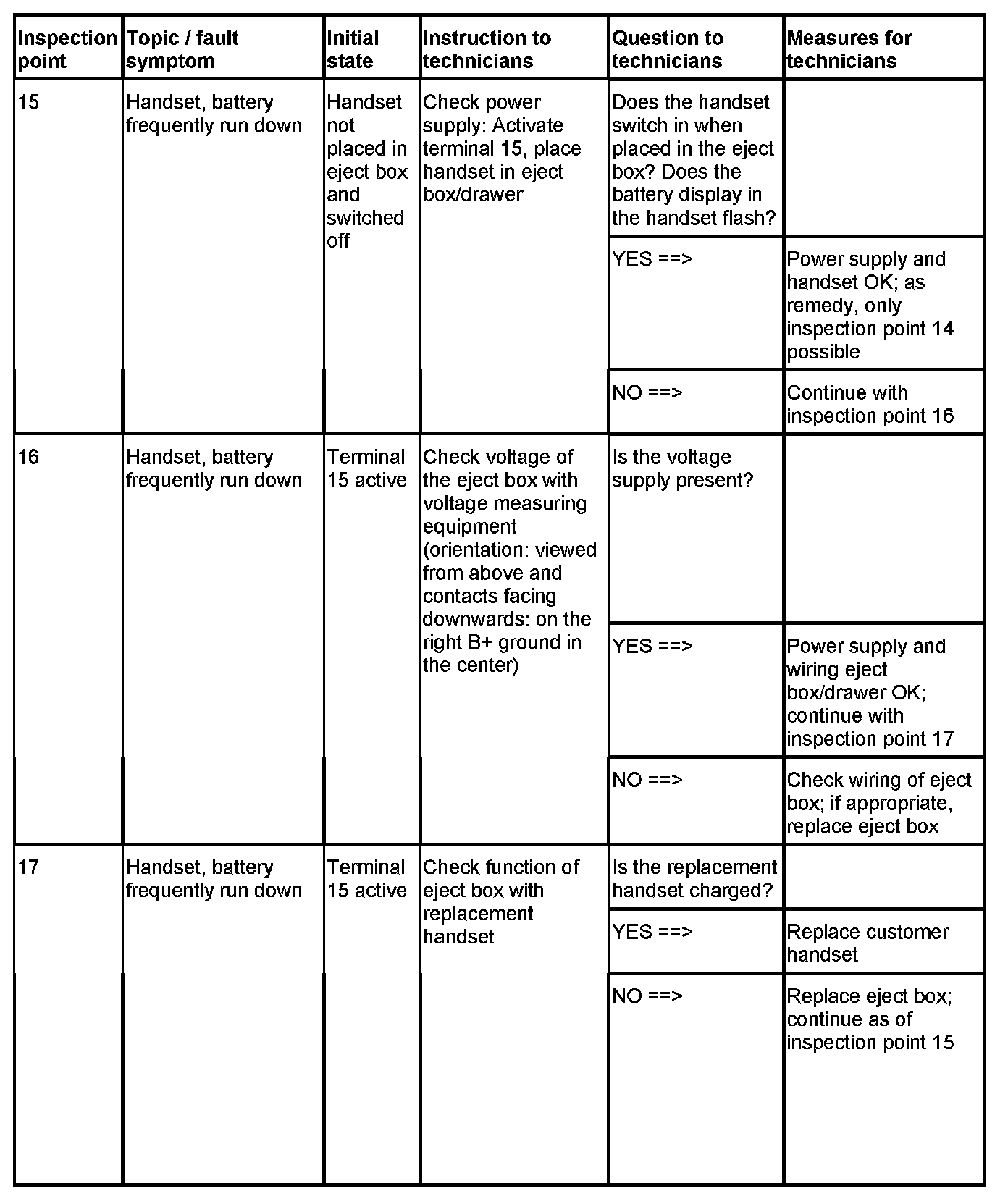

Inspection Point 15 - 17:

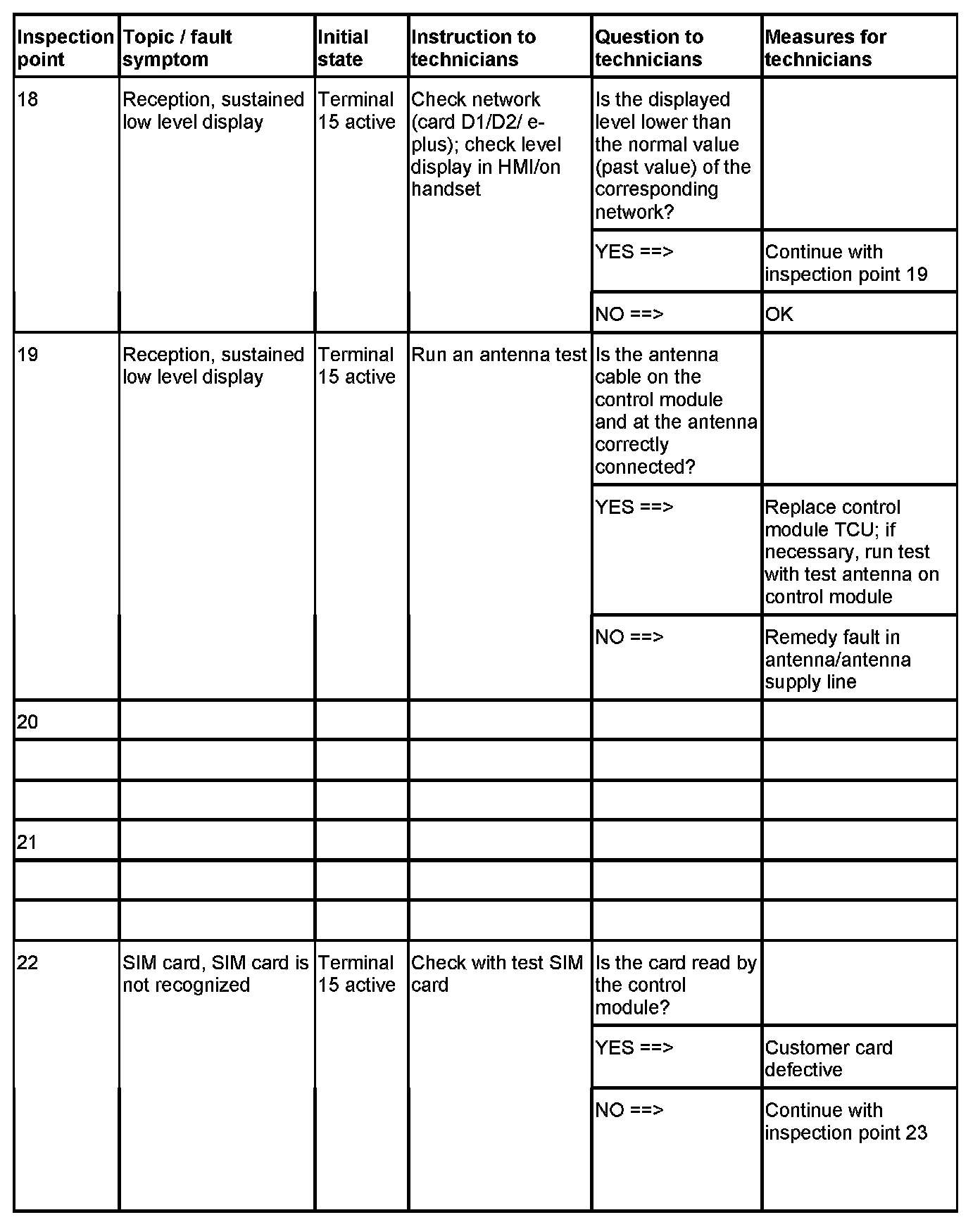

Inspection Point 18 - 22:

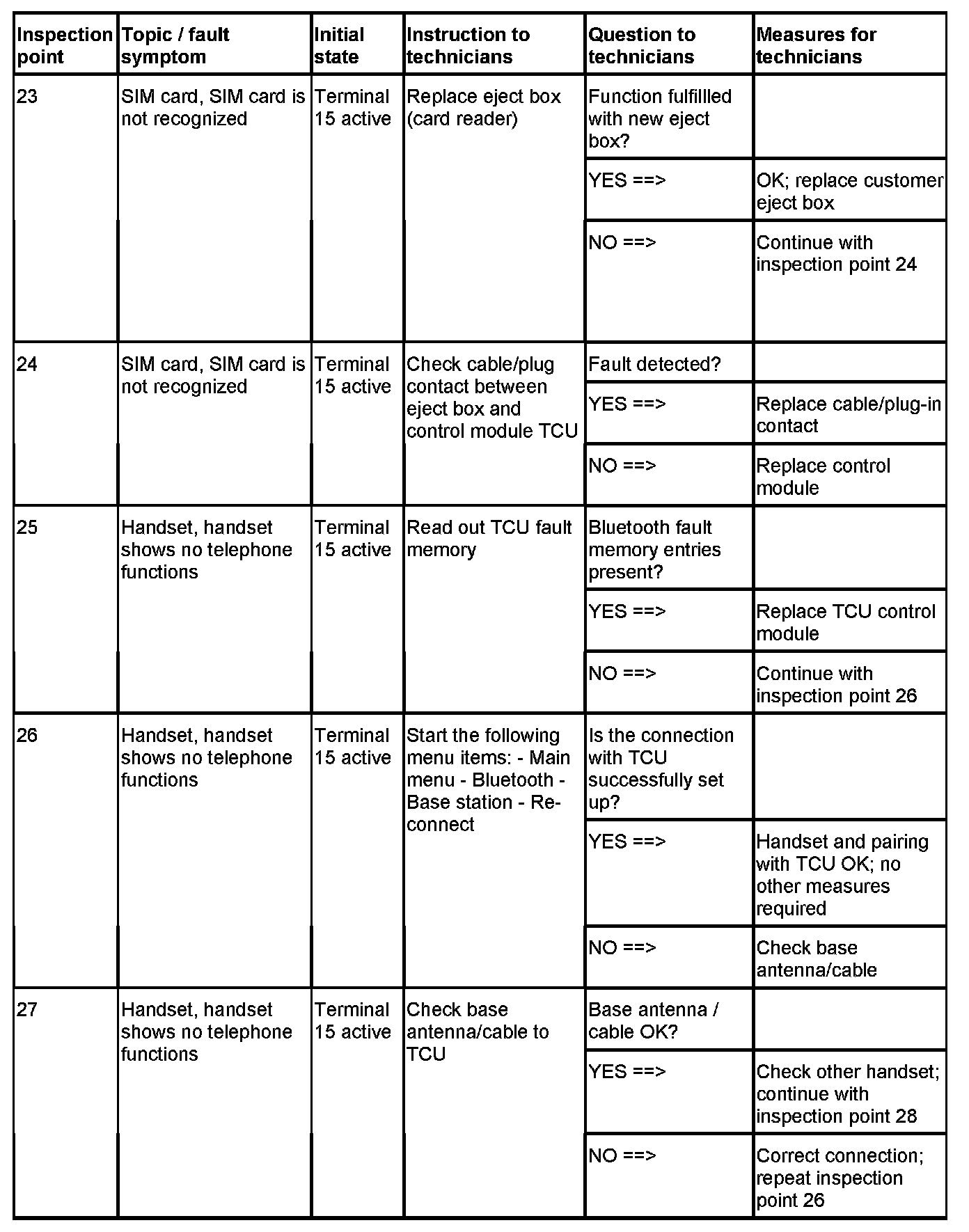

Inspection Point 23 - 27:
Inspection Point 28 - 31:

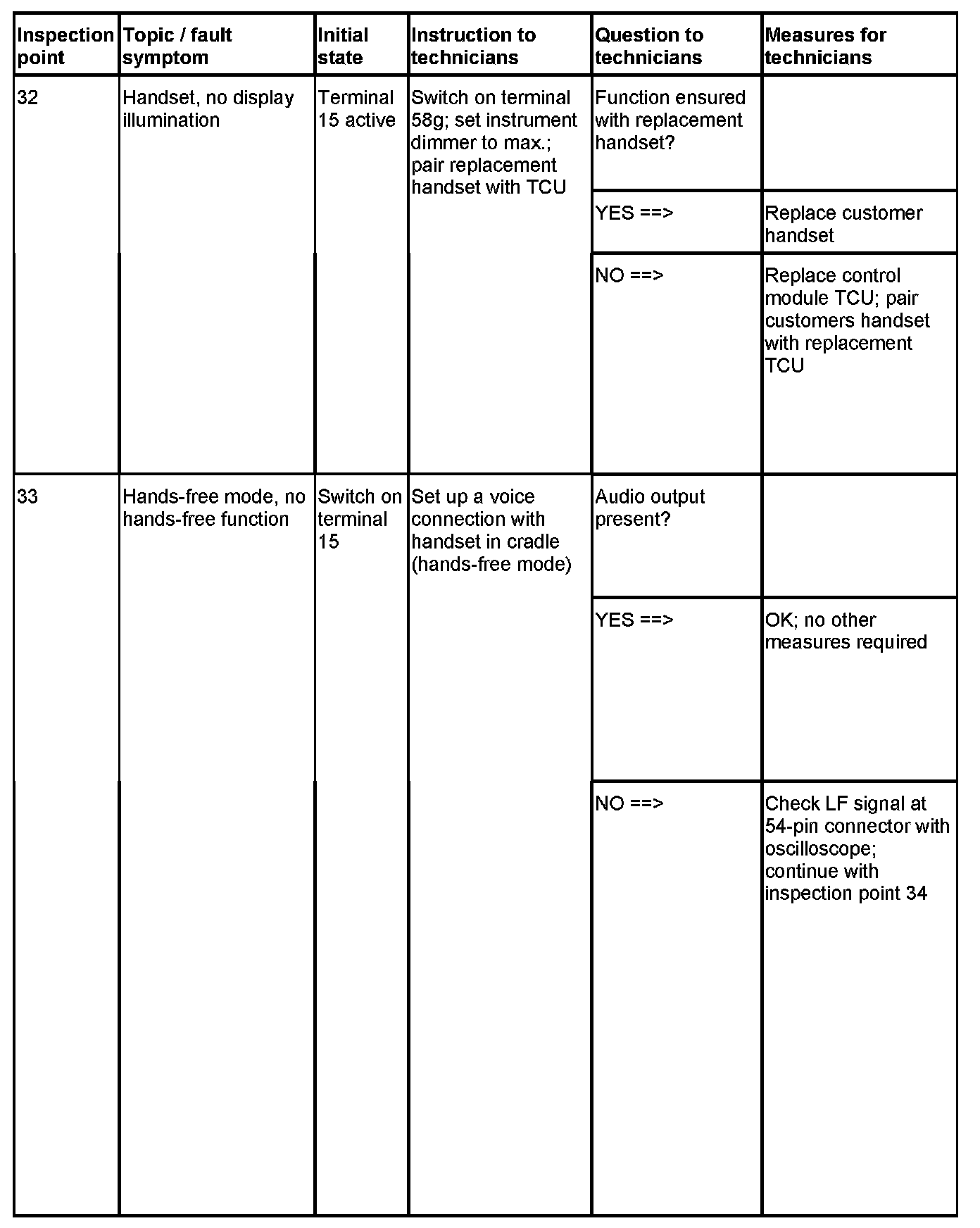

Inspection Point 32 - 33:

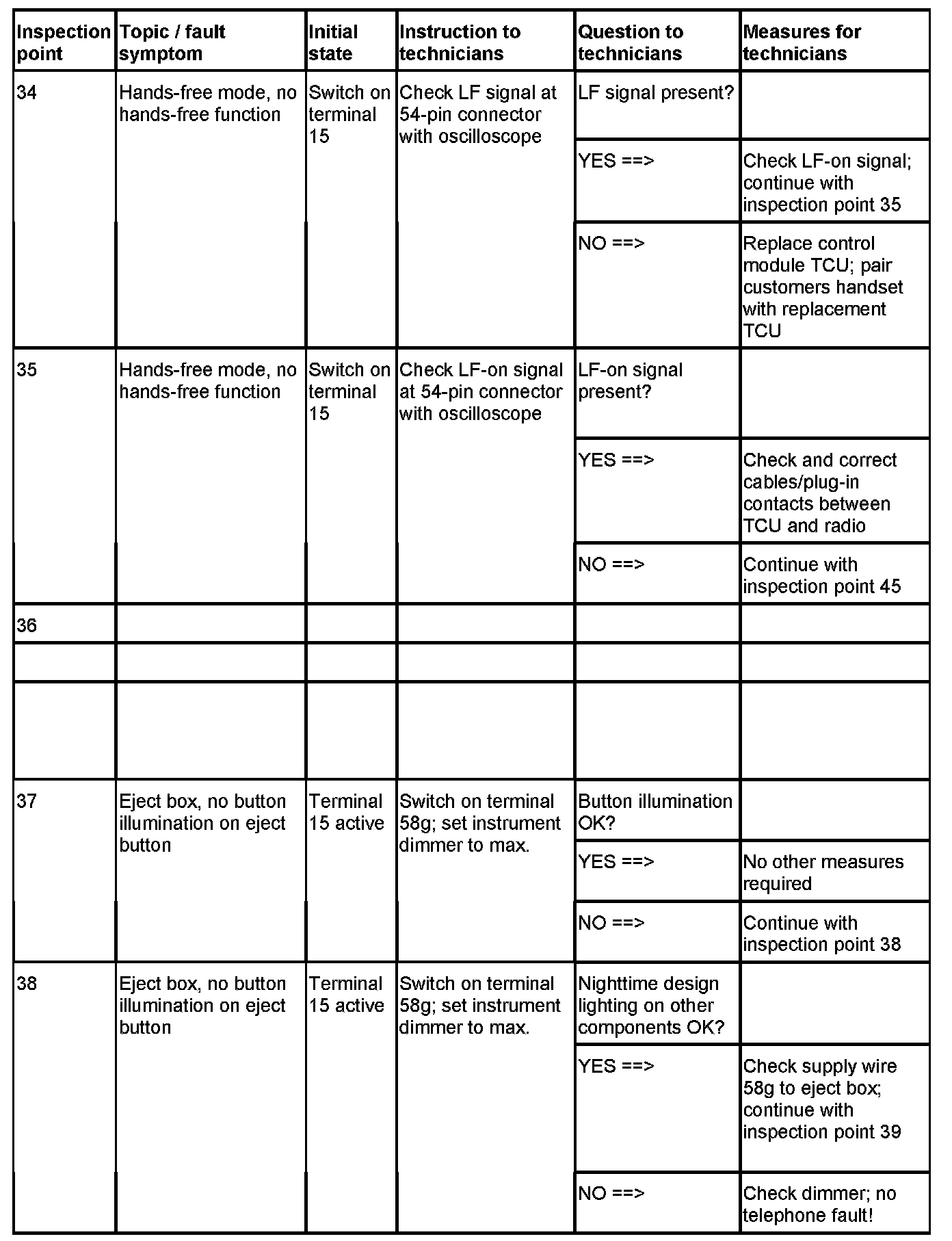

Inspection Point 34 - 38:

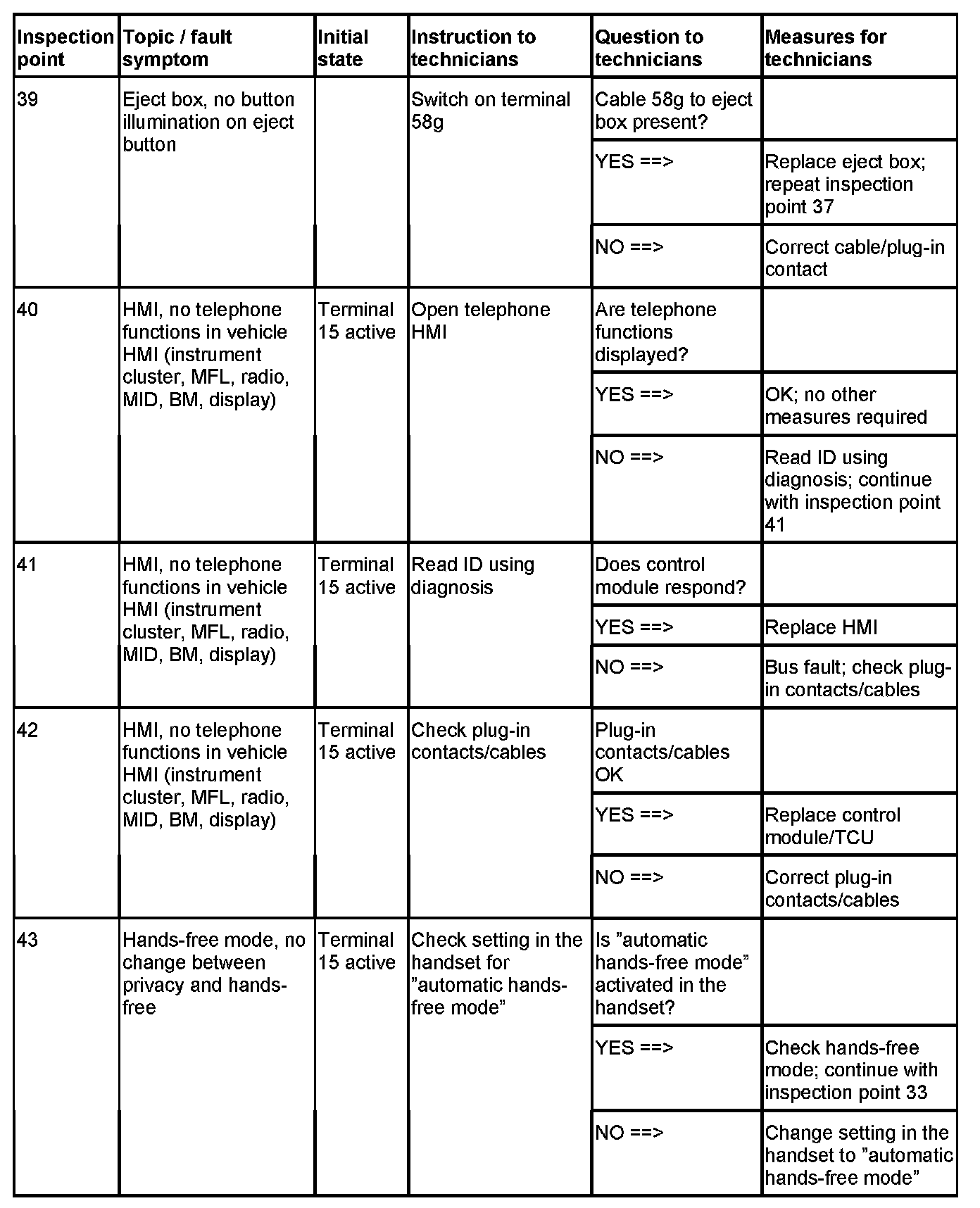

Inspection Point 39 - 43:

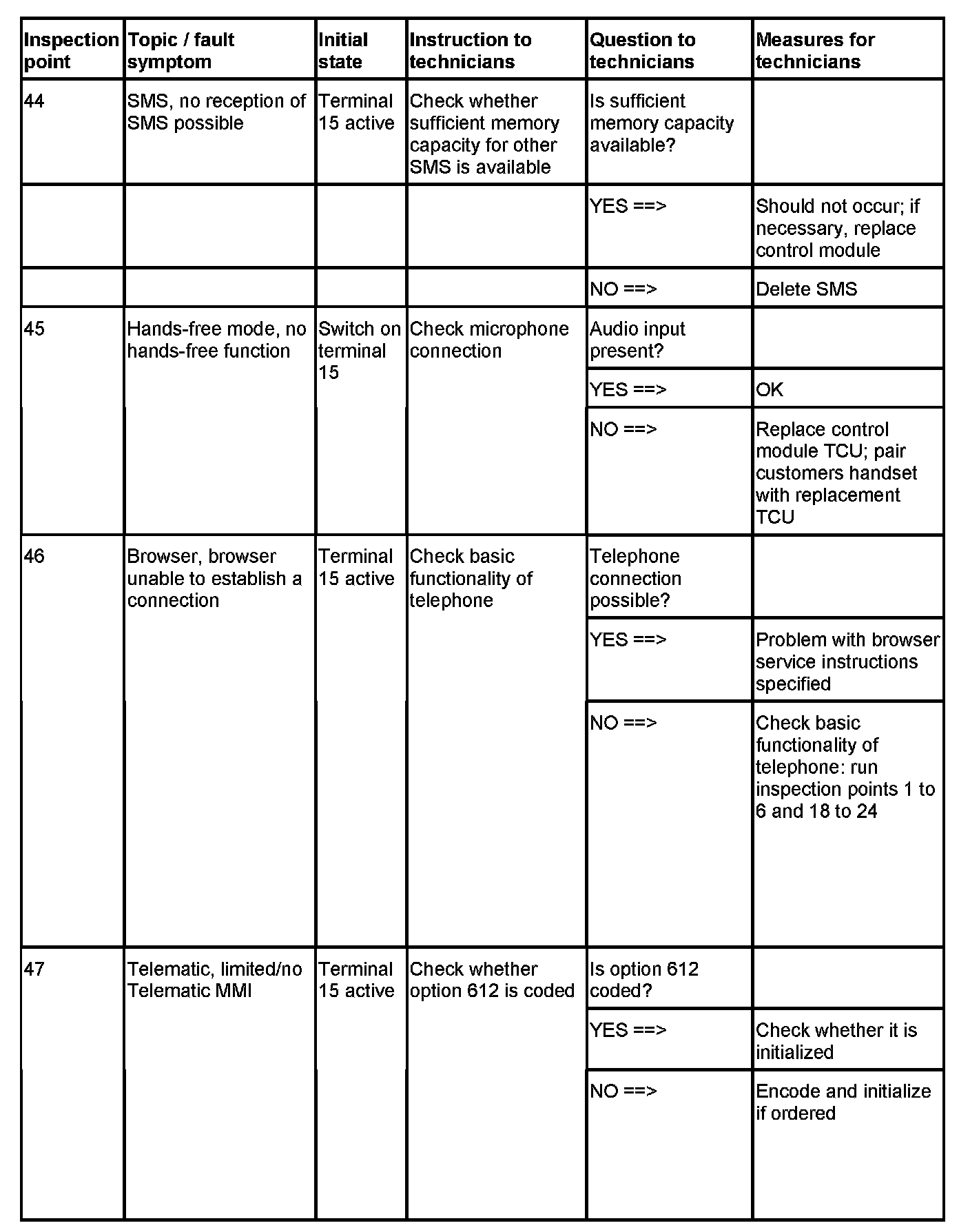

Inspection Point 44 - 47:
Inspection Point 48 - 51:

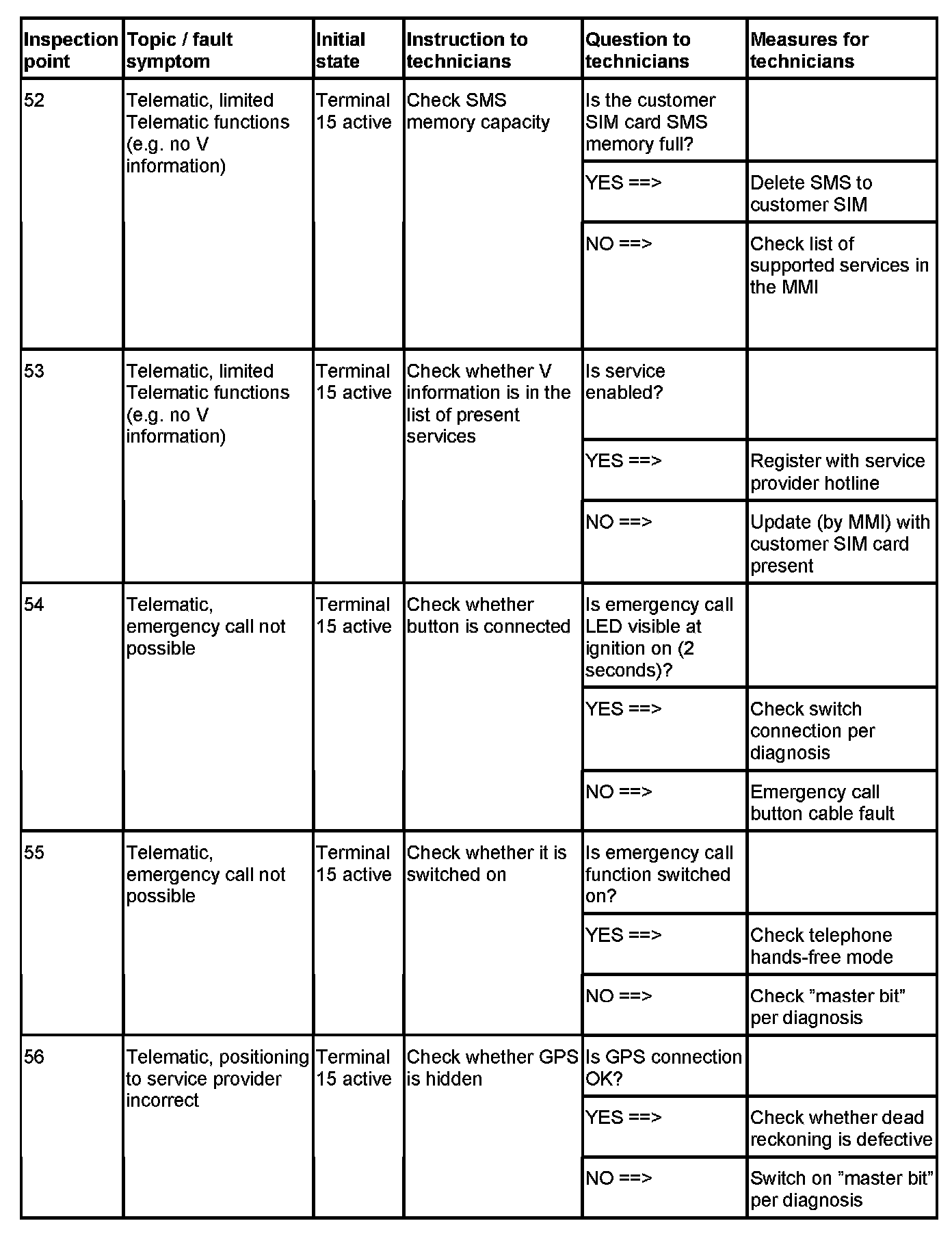

Inspection Point 52 - 56:
Inspection Point 57 - 62:
