2003 BMW Z8 BaseFACTORY OEM SERVICE PROCEDURE
Toe-In Adjustment: Rear
NOTE:
Any change in camber always involves a change in toe. The camber must always be adjusted first. See REAR
under CAMBER ADJUSTMENT.

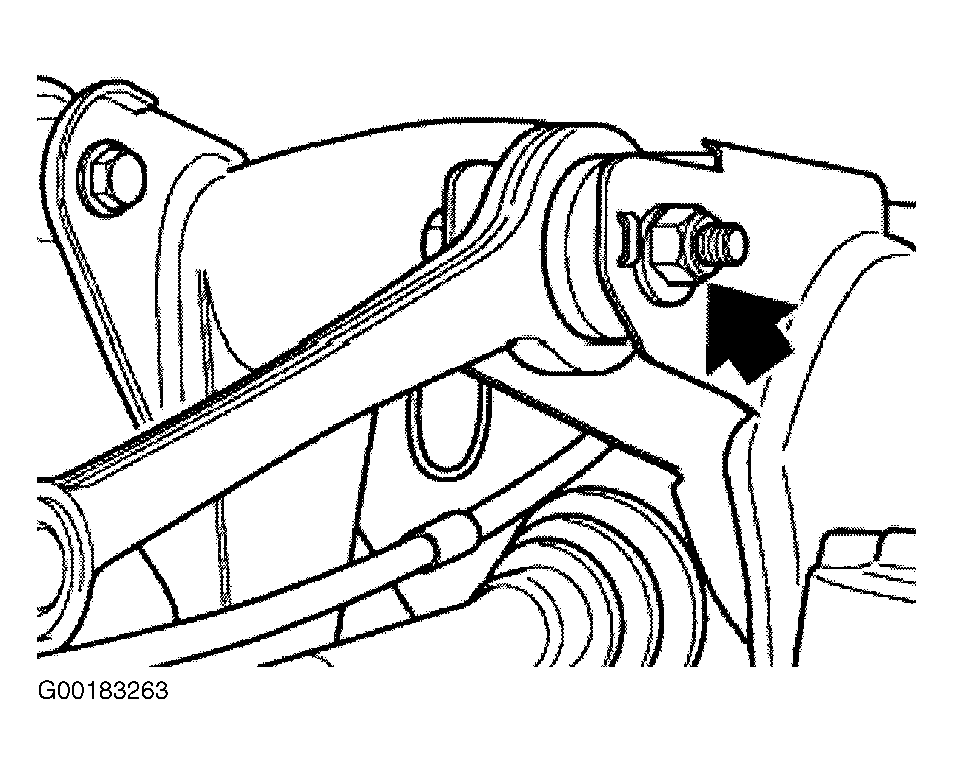

- Replace and tighten down disc collar nut. See Fig 1 .
- Tighten disc collar nut to specification. See TORQUE SPECIFICATIONS .
- Release disc collar nut again by 1/2 to 1 turn.
- Adjust toe-in with eccentric screw. See Fig 2 . Adjust to specification. See WHEEL ALIGNMENT SPECIFICATIONS .
- Tighten down disc collar nut to specification. See TORQUE SPECIFICATIONS .
CAUTION:
If the disc collar nut is tightened down more than 10 times during adjustment, it must be replaced. The self-locking effect becomes too slight.
