Transistor Function: Notes
The transistor takes on a number of applications that must be understood to effectively analyze a circuit.

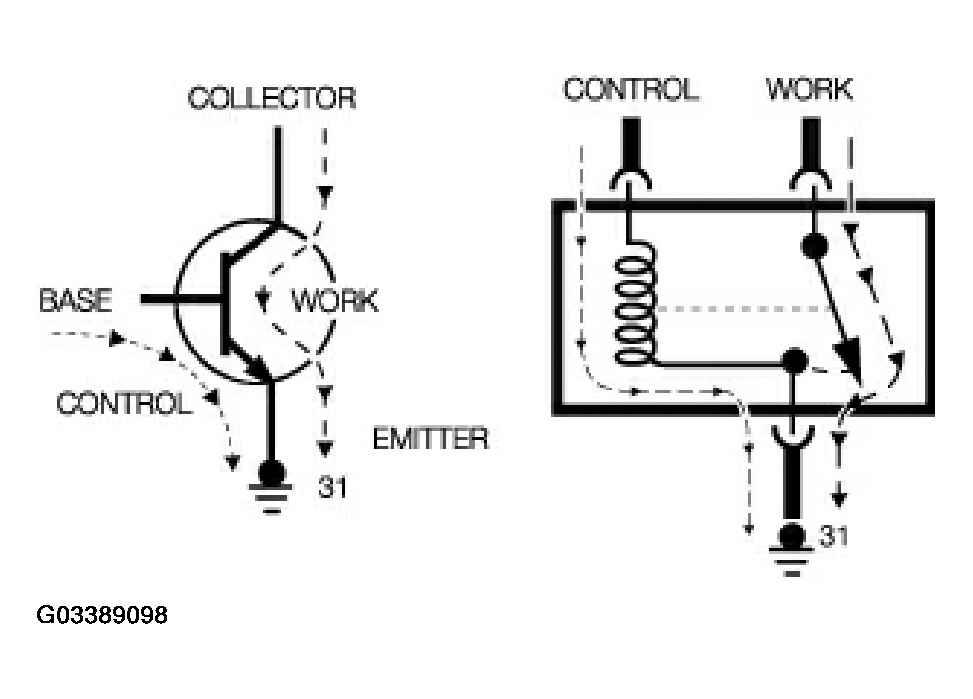

The transistor in operation functions as two parts much like a relay. Both the relay and the transistor control high currents with a low current signal.
The base/emitter path functions as the control circuit activated by the control module to oversee or control the work.
The collector/emitter path functions as the work side of the circuit, supplying power or switching on the work.

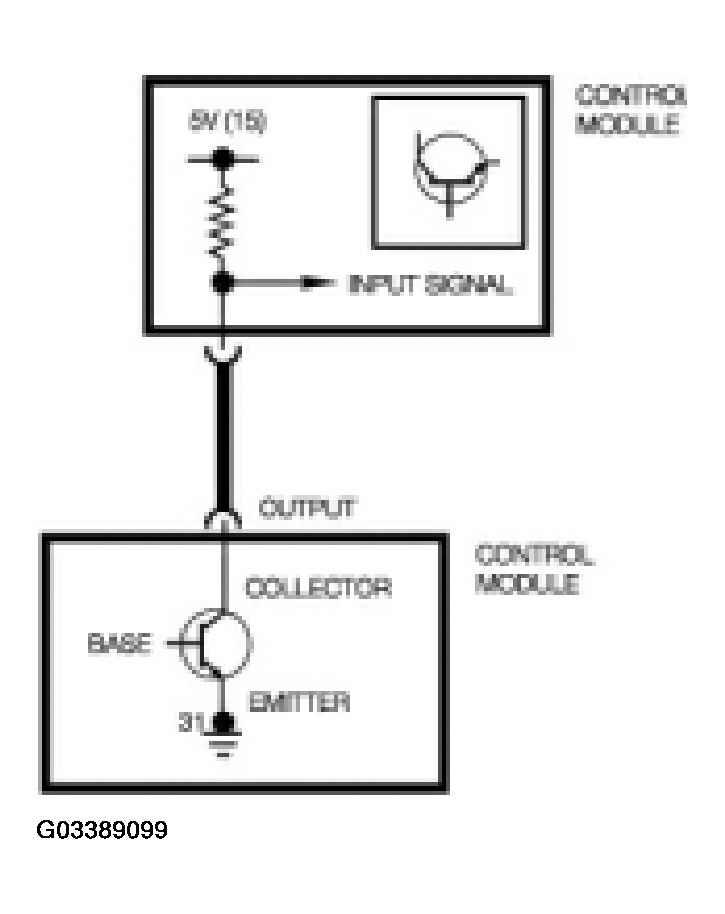

In operation the transistor can be switched ON momentarily, or supply a constant power or ground.
The transistor can also be modulated or pulsed to supply a modulated square wave signal.
