86 10 ... Replacing 12 volt socket

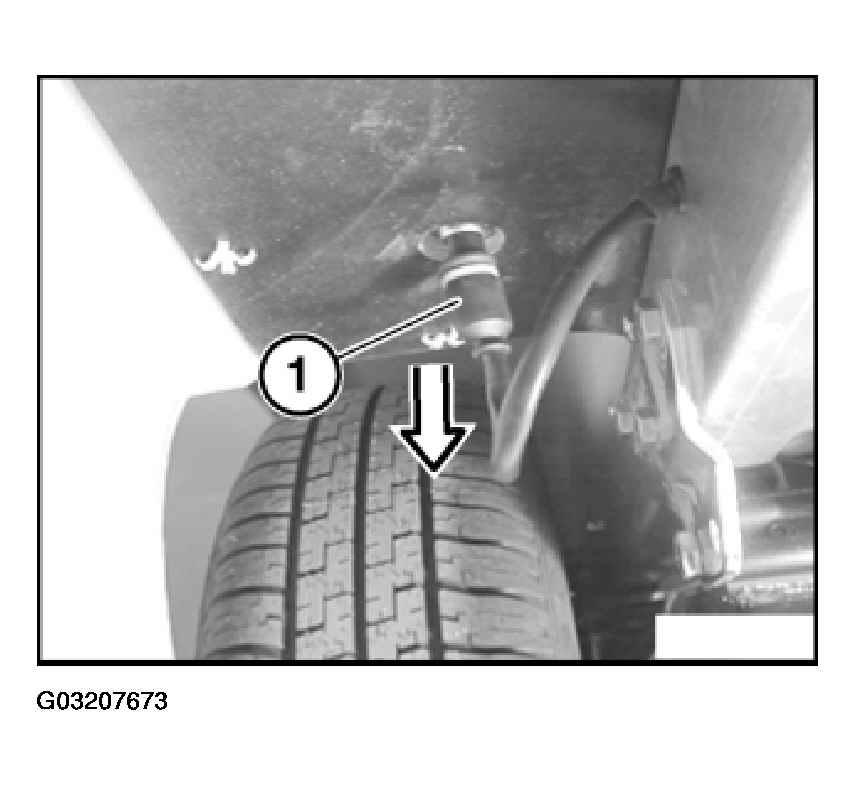

From underside of platform, cut through cable tie (1) and remove. Disconnect plug with grommet (2) from socket (3) towards bottom.
Installation:
Position all seals correctly. Also secure plug with grommet (2) using new cable tie to other socket.

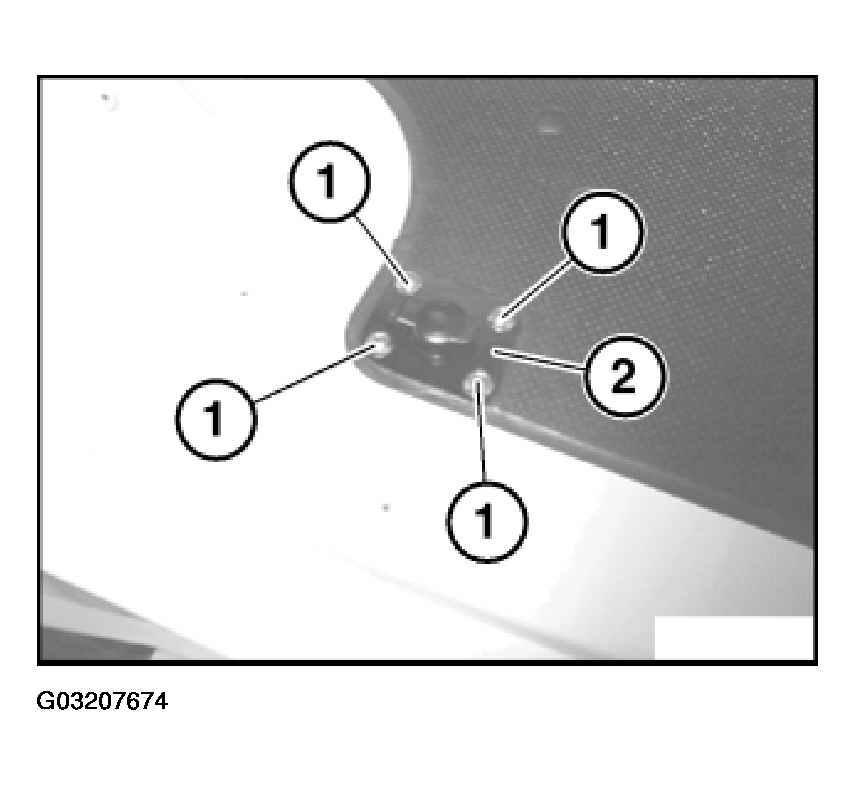

On upper side of platform, release Phillips screws (1) on mounting bracket (2).

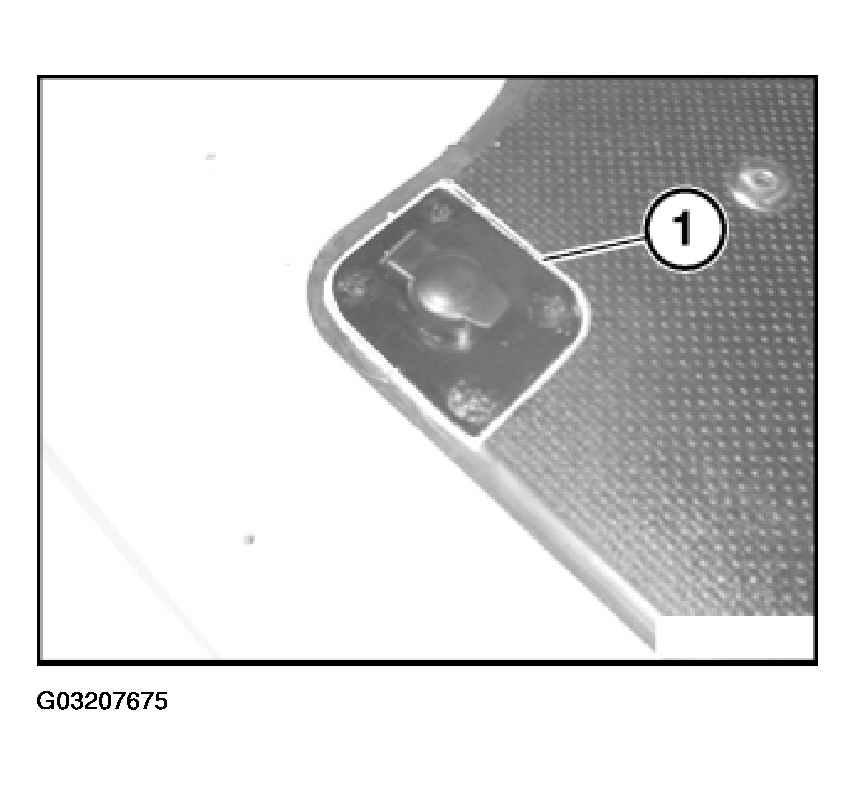

Remove sealing compound along white marking (1).
Installation:
Make sure cable is correctly laid.
Use Sikaflex 221 as sealing compound.

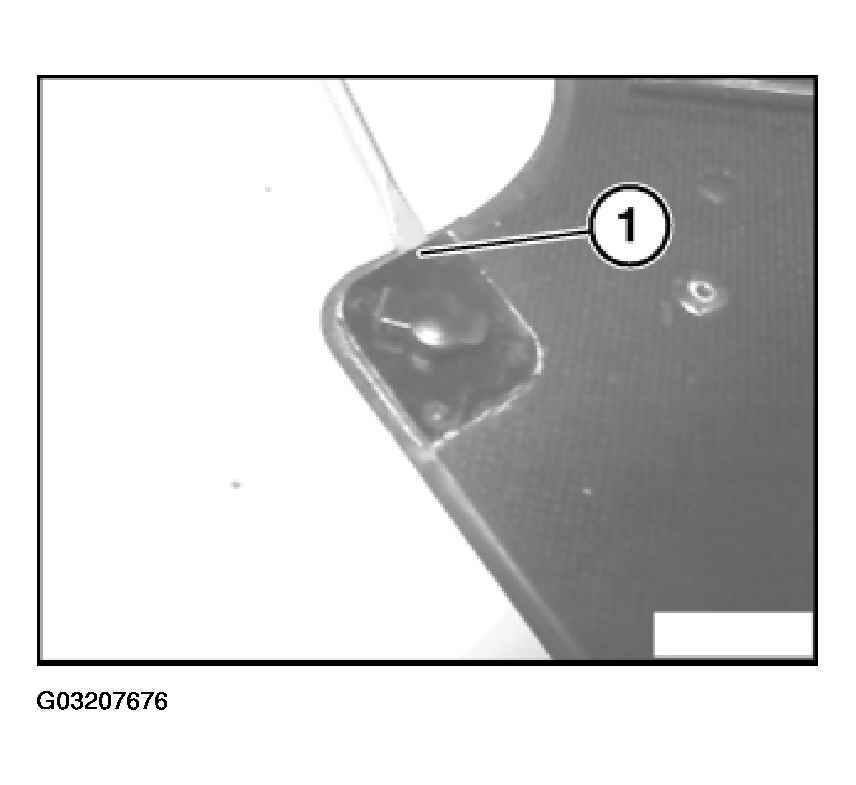

Grip under mounting bracket (1) with a screwdriver and lever out bracket (1) towards top. Remove bracket (1).

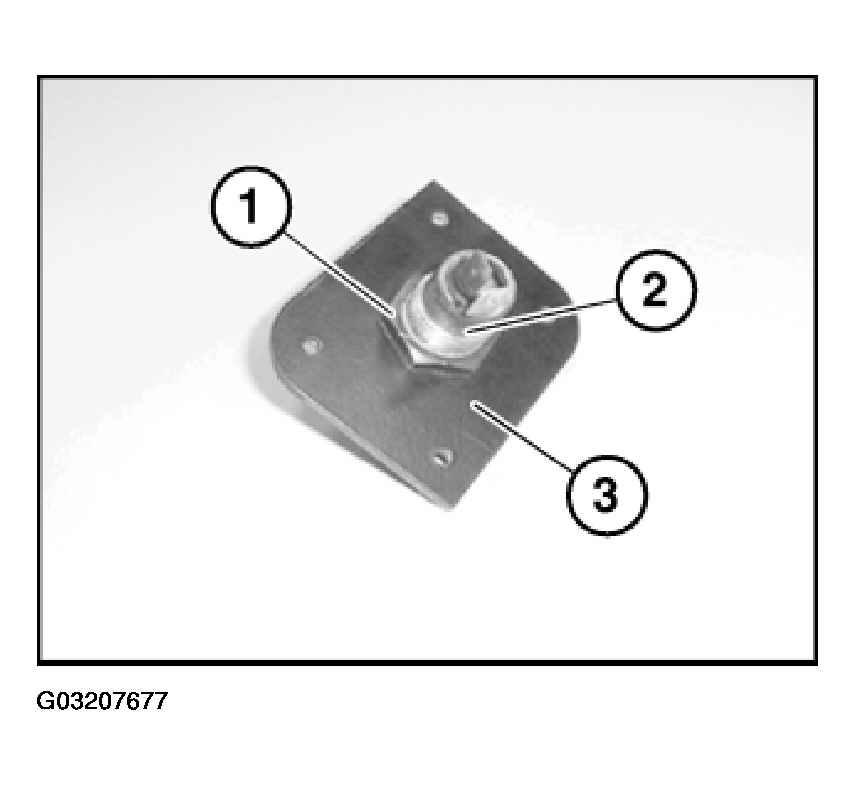

Release nut (1). Remove socket (2) from mounting bracket (3).
