61 13 .. Unlocking and disconnecting different plug connections

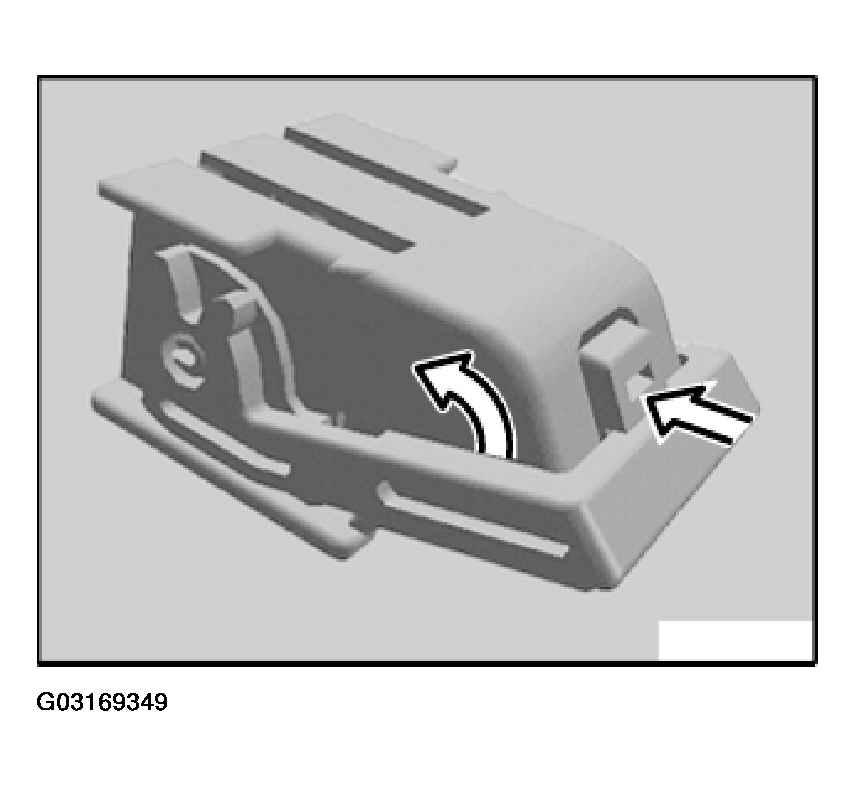

Press lock and open clip in direction of arrow.
Disconnect plug connection.

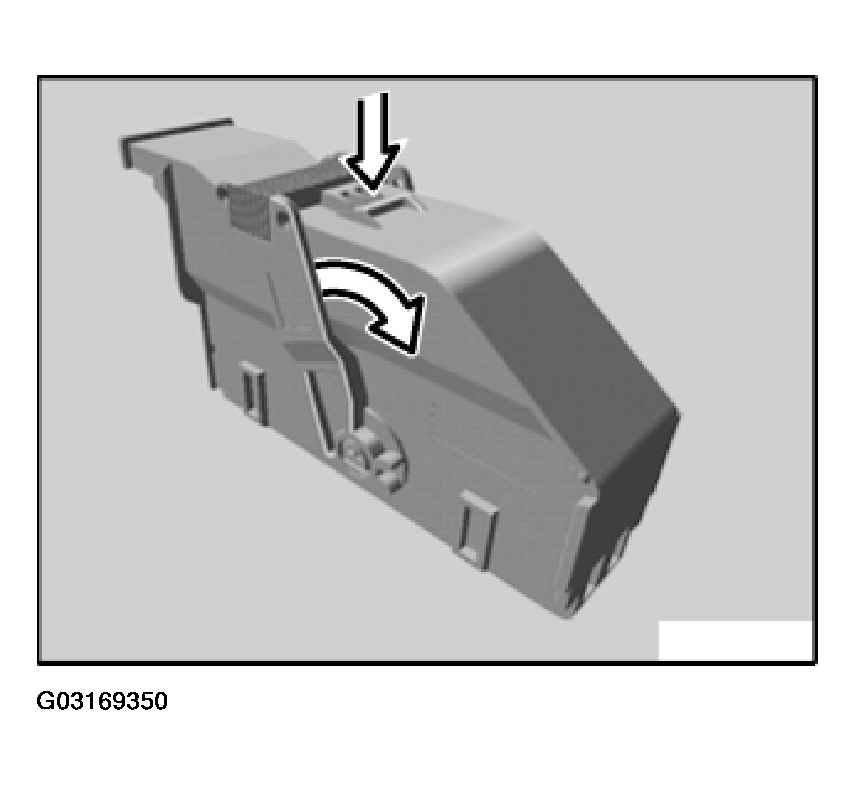

Press lock and open clip in direction of arrow.
Disconnect plug connection.

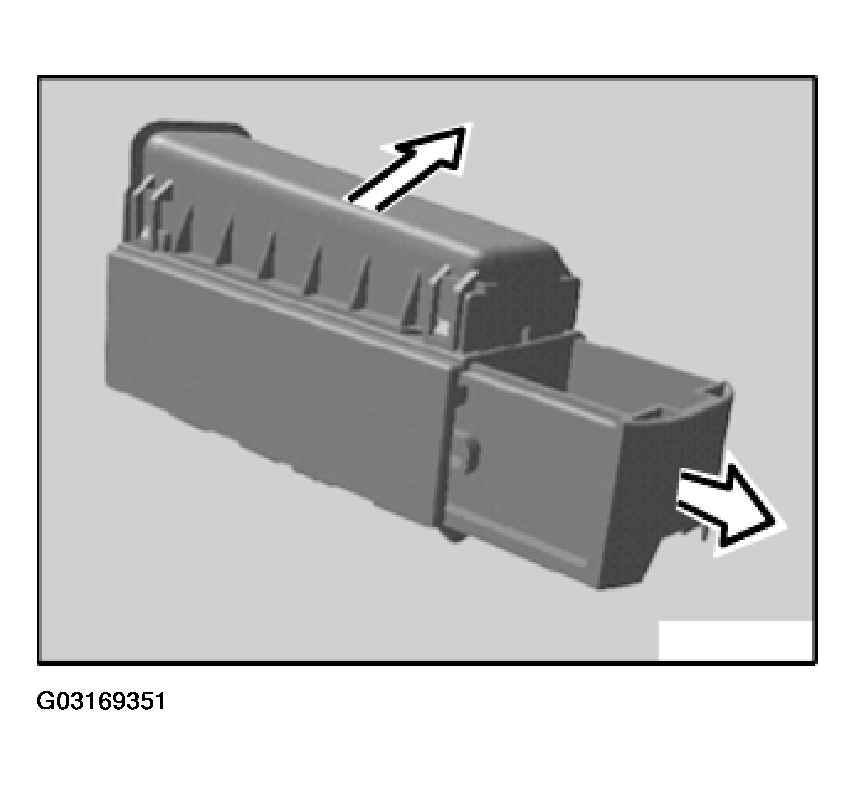

Open clip in direction of arrow and disconnect plug connection in direction of arrow.

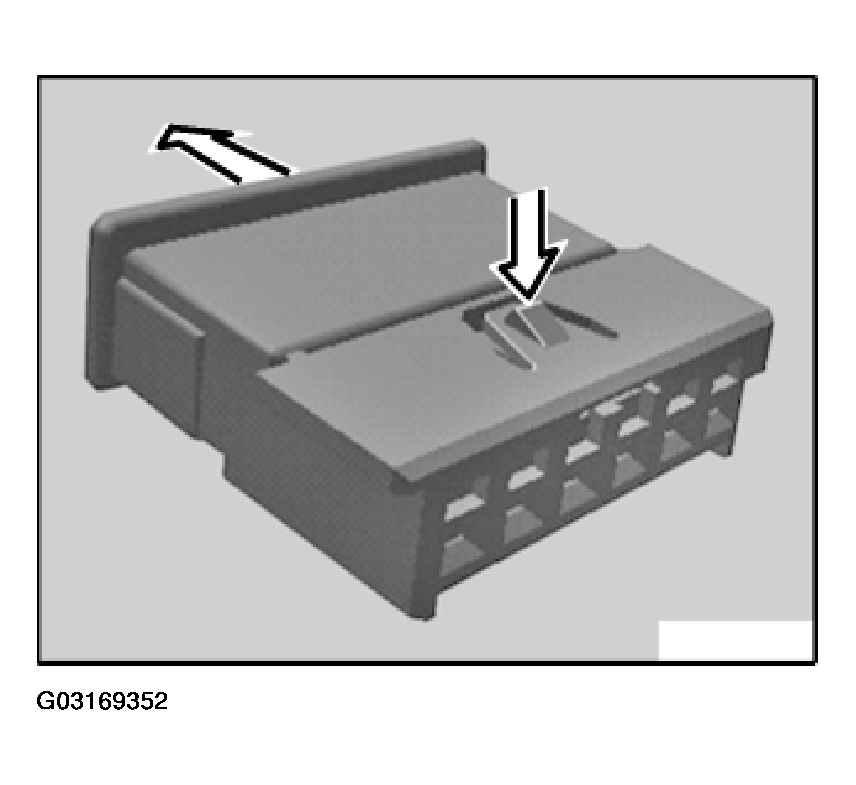

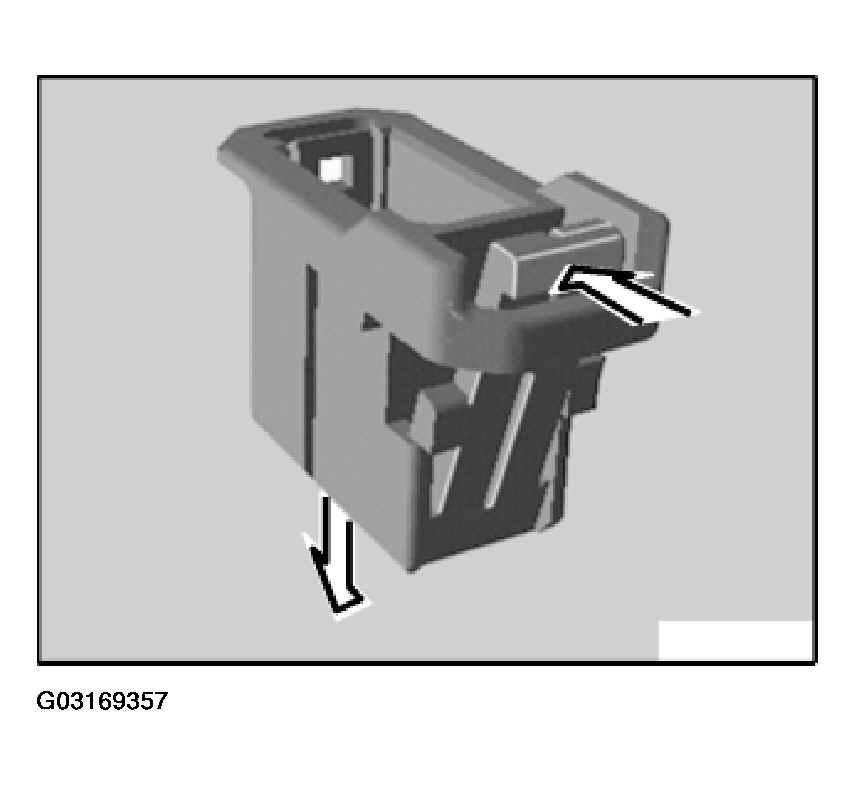

Press lock and disconnect plug connection in direction of arrow.

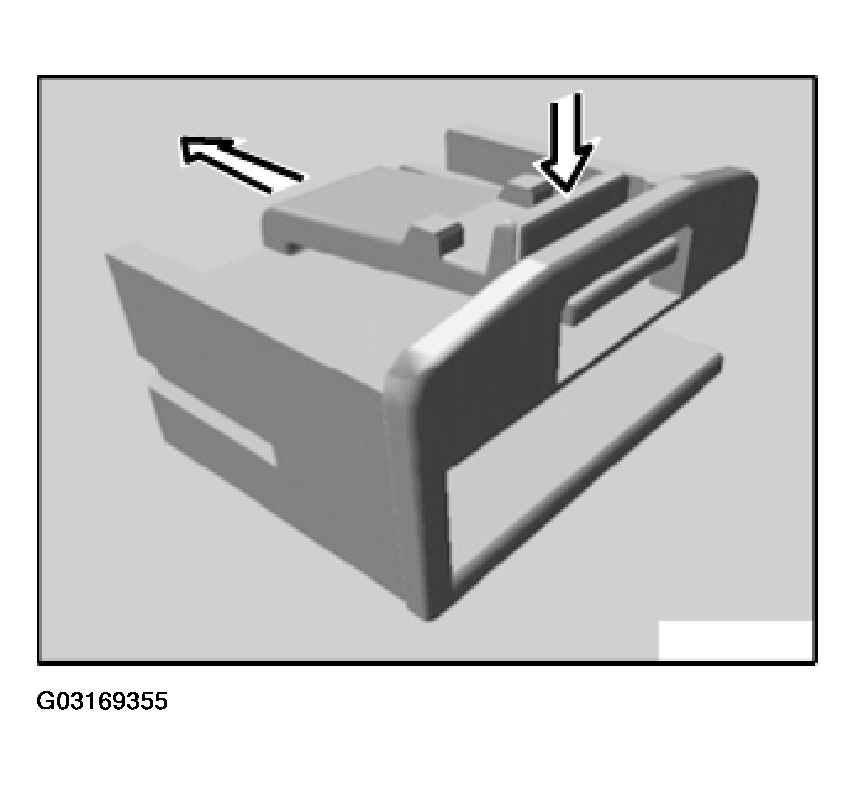

Press lock and disconnect plug connection in direction of arrow.

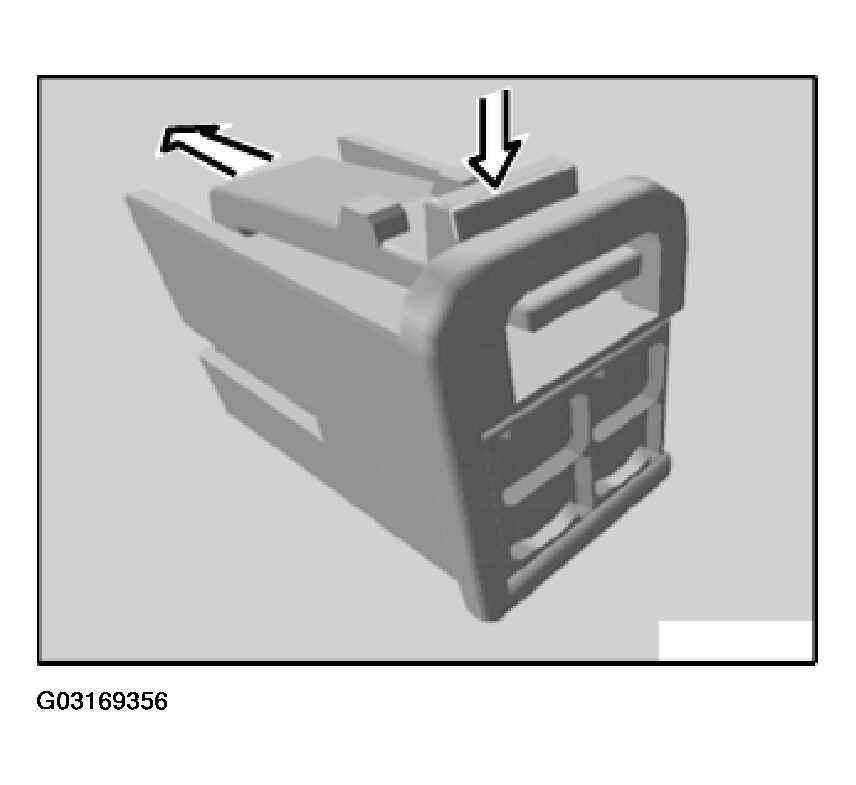

Press lock and disconnect plug connection in direction of arrow.

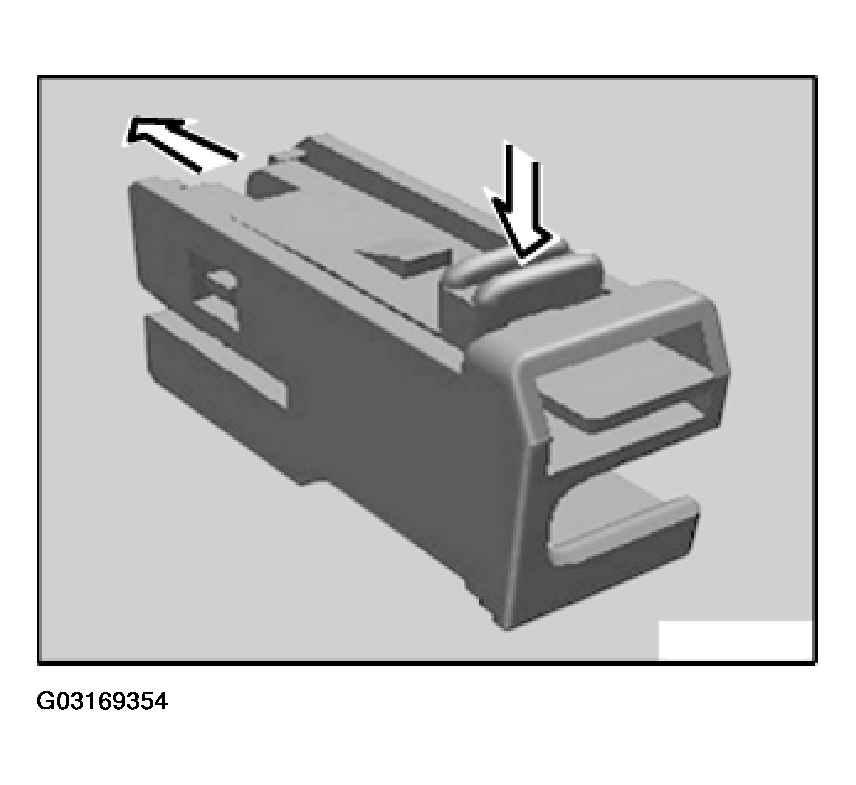

Press lock and disconnect plug connection in direction of arrow.

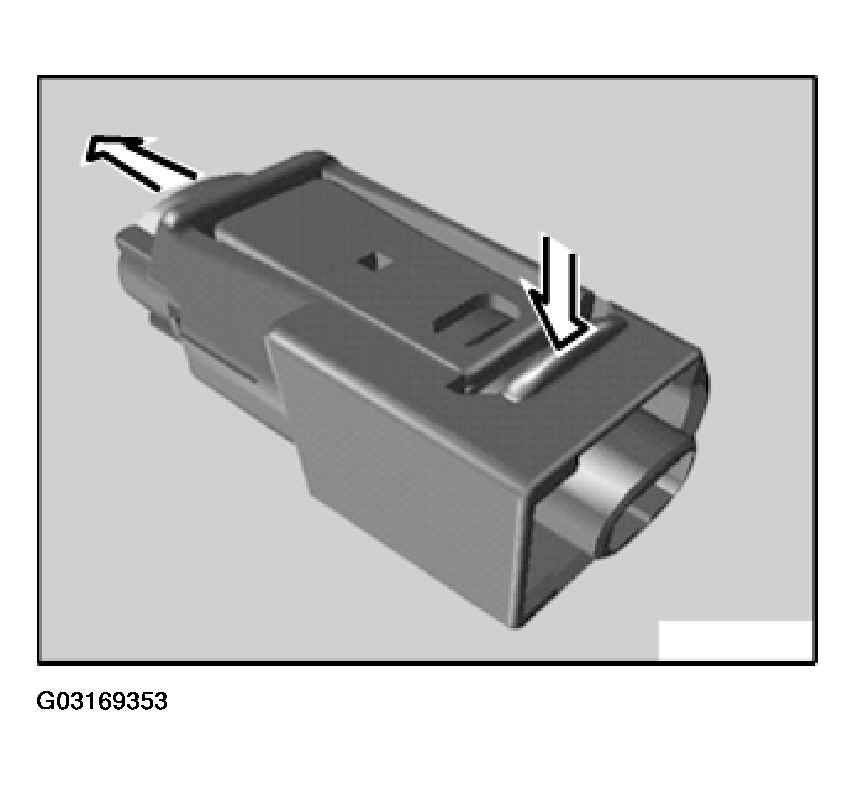

Press lock and disconnect plug connection in direction of arrow.
Press lock and disconnect plug connection in direction of arrow.
