System Components: Notes
MED 9.2.1 Engine Control Modules - New Features: This Bosch Engine Management System is introduced for more stringent emission requirements as well as reducing fuel consumption and increasing driving performance. Flash EEPROMs (additional 1 MB flash memory) are used as the storage medium for program data, fault code memory as well as the adaptation values.
The 134 pin MED 9.2.1ECMs are manufactured by Bosch to BMW specifications. The ECM is the SKE (standard shell construction) housing and uses 5 modular connectors.
For testing, use the Universal Adapter Set (break-out box) Special Tool: # 90 88 6 121 300

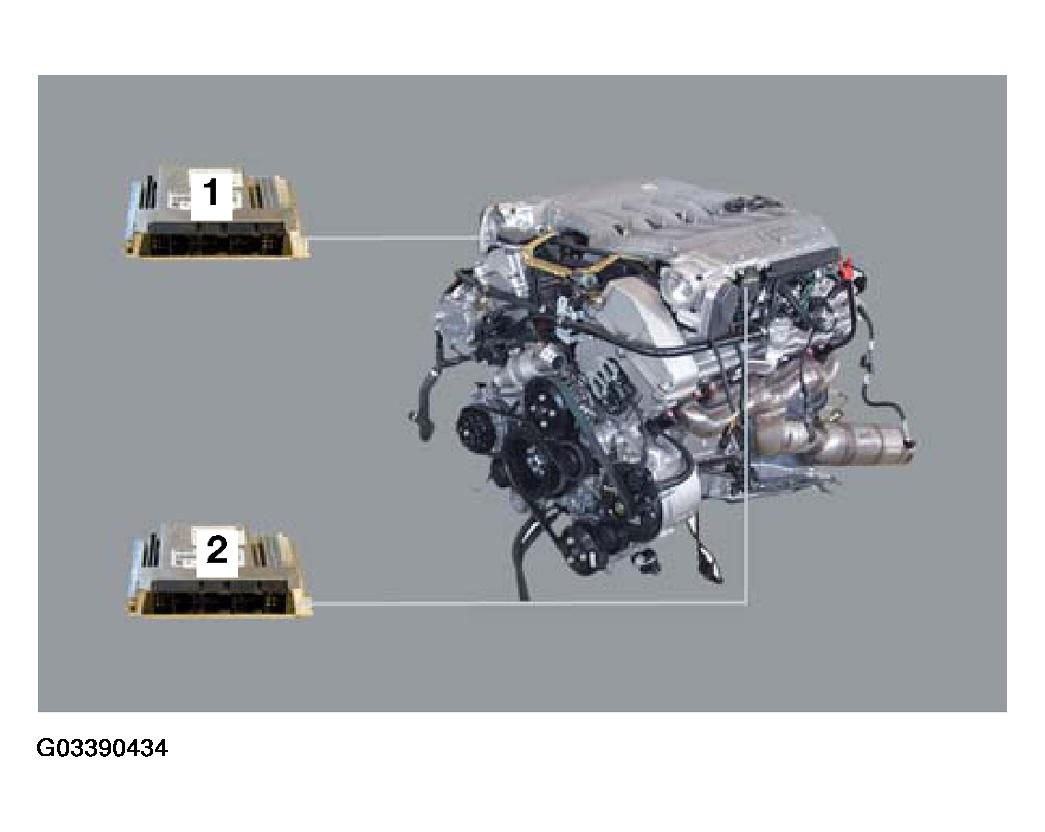

The ECMs work in combination with the Valvetronic Control Module. The N73 engine has a total of 5 control modules to manage the engine functions:
