Follow instructions for removing and installing electronic control units. Refer to 12 00 ... INSTRUCTIONS FOR REMOVING AND INSTALLING ELECTRONIC CONTROL UNITS .

Before replacing the control module, always follow the instructions listed below:

Code control unit. Refer to 12 14 700 CODING CONTROL MODULE (DME/DDE) .
Program control unit. Refer to 12 14 705 PROGRAMMING CONTROL UNIT (DME/DDE) .

CAUTION: It is absolutely essential to read out the fault memory with the MoDiC or the BMW DIS and to create a fault memory printout.

Turn off ignition.

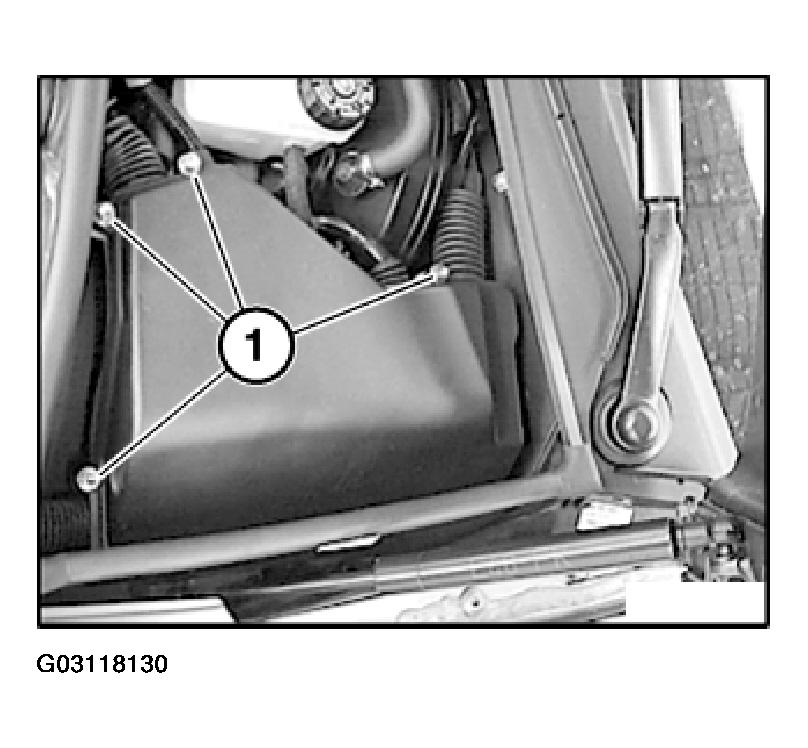

Release screws (1).

Remove cover.

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Correctly install wiring harness with grommet in cover (water tightness).

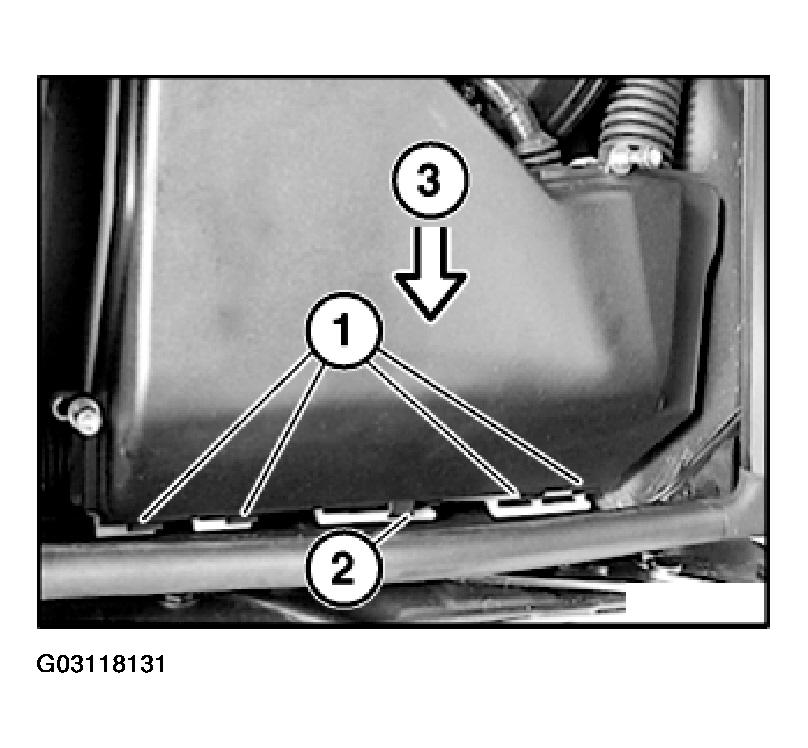

Hook cover (3) into hinges of underside of electronics box (1). Make sure upper stop (2) is correctly installed above hinges on underside of electronics box.

Fig 2: Locating Hinges Of Underside Of Electronics Box

Courtesy of BMW OF NORTH AMERICA, INC.

Assignment of electronics box (with automatic transmission):

= Control unit, Digital Motor Electronics (DME).
= Control unit for automatic transmission.

Fig 3: Identifying Control Units
Courtesy of BMW OF NORTH AMERICA, INC.

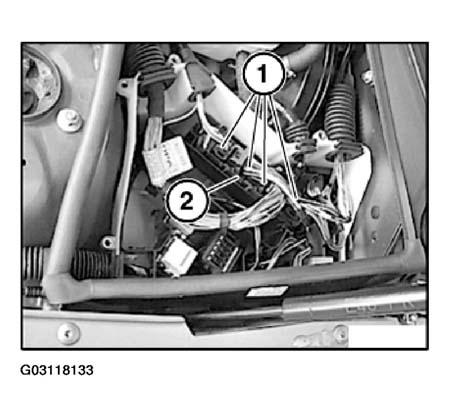

Disconnect plug connections (1).

Remove control unit (2).

Installation:

Replacement:

Observe equipment no. and coding.

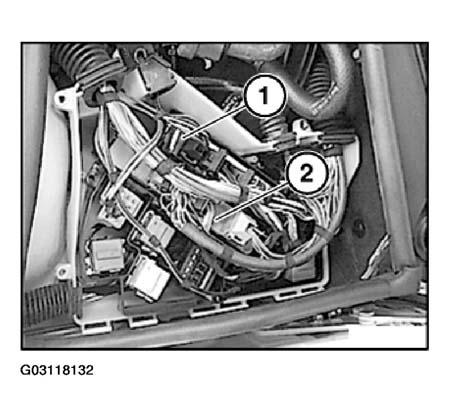

Fig 4: View Of Plug Connections And Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.
