2002 BMW M3 2D ConvertibleFACTORY OEM SERVICE PROCEDURE

61 35 ... Notes On ESD Protection (Electro Static Discharge)

Special tools required:

12 7 060

For further information on special tools, refer to GENERAL ELECTRICAL SYSTEM - SPECIAL TOOLS - 3-Series (M54/E46) .

NOTE: Electrical components which are particularly sensitive to electrostatic discharge (electronic control units, sensors, etc.) are marked with the ESD warning symbol.

E- Electro

S- Static

D- Discharge

For further information on this subject, please refer to Service Information SWZ 2 06 04 (128).

Statically charged persons can discharge by touching electrical components.

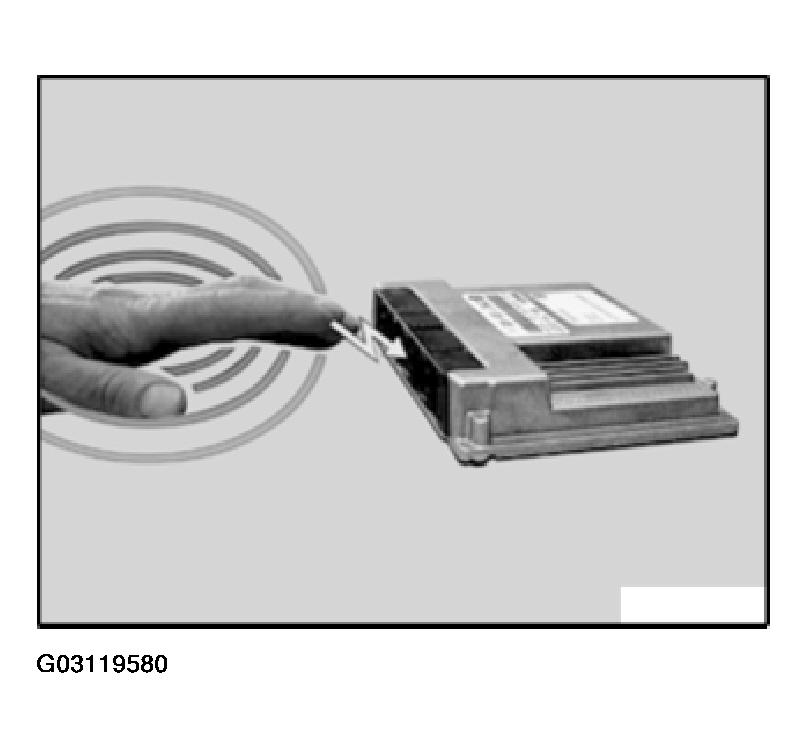

Fig 1: View Of Static Discharge

Courtesy of BMW OF NORTH AMERICA, INC.
