Fuel Pump Module

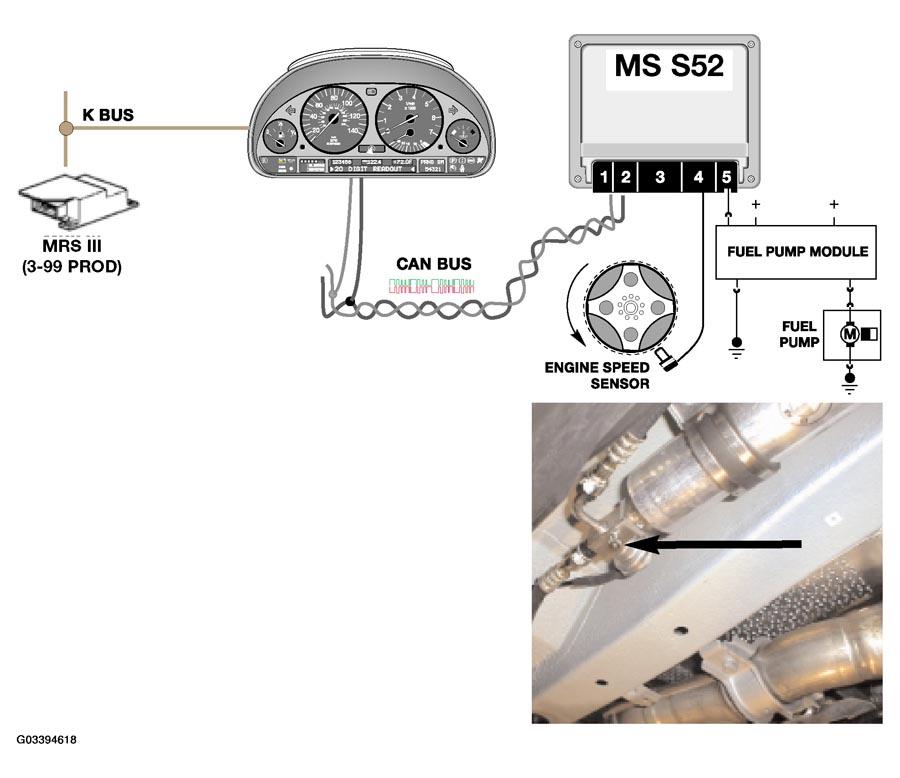

The MS S52 controls the activation of the fuel pump module. After the ignition is switched ON, the MS S52 provides a pulse width modulated ground for the fuel pump module and the ground is maintained with the presence of the engine speed signal.
While new fuel pump delivers more volume and pressure, this creates more heat due to the increased power consumption. To lower the in-tank temperature, the fuel pump module will vary the pump speed (amperage). The MS S52 control module will vary the ground signal (PWM) to the fuel pump module. This variation is based on engine speed and load:
- Idle and part load = low pump speed
- Start-up (20 seconds) and full-load = full pump speed
The power to the fuel pump relay will be switched off in the event of an airbag activation. The MRS III control module will signal the Engine control module over K-bus and CAN bus for this purpose.
