Powertrain Control Module (Pcm)

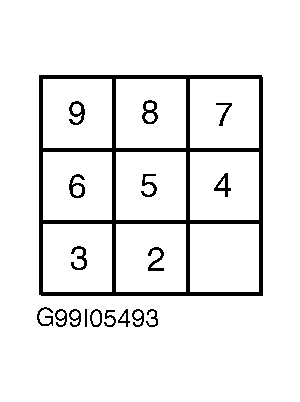

All models use an PCM with 9-pin, 24-pin, 40-pin and 52-pin connectors. See Fig 1-Fig 4 . For PCM location, see PCM CONTROL UNIT LOCATION table. PCM uses intake airflow, intake air temperature, throttle position, coolant temperature, engine speed, vehicle speed, crankshaft position, knock sensors and exhaust gas oxygen content intake signals to determine optimum fuel injection and ignition timing.
| Application | Location | |||
|---|---|---|---|---|
| 3-Series | ||||
| E46 | Inside Box On Left Rear Corner Of Engine Compartment | |||
| Z3 | In Right Rear Side Of Engine Compartment | |||
| All Others (1) | Inside Box On Right Rear Corner Of Engine Compartment, Behind Strut Tower | |||
|
||||
