2000 BMW M5FACTORY OEM SERVICE PROCEDURE
Abs/ASC+T/DSC Control Module (From 09/98): Removal
- Before removing the ABS/ASC+T/DSC control module, read out the fault memory and if necessary print out the fault code.

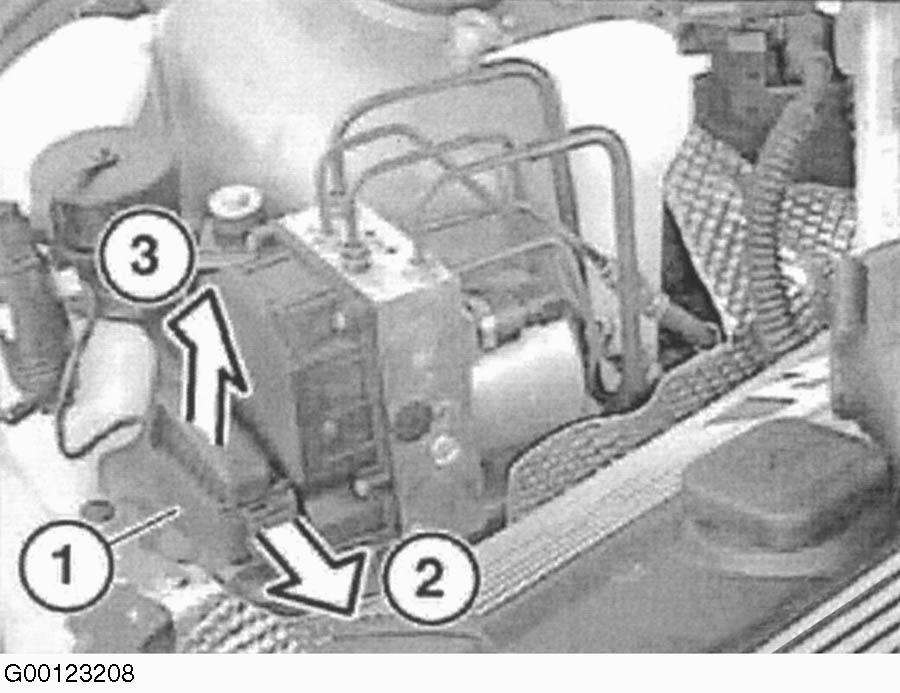

- Release lock on plug connection (1) in direction (2). Detach plug connection (1) in direction (3) vertically toward top. See Fig 1 .
- Release screws (1) and detach control module (2) from hydraulic unit. See Fig 2 .
- Check sealing face (1) for damage (visual inspection). Clean sealing face (1). Do not use any sharp tools or aggressive cleaning agents. Check contact lugs (2) for corrosion or damage. See Fig 3 .
