2000 BMW 740iFACTORY OEM SERVICE PROCEDURE

Electrical Component Locator: Splices

SPLICES LOCATION

Component	Location

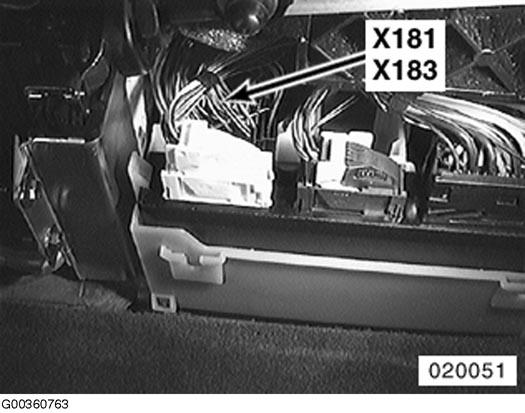

X181	Under glove box. See Figure.
X183	Under glove box. See Figure.

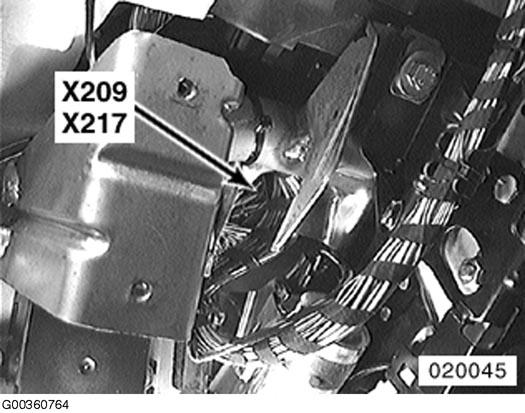

X217	Left side of dash. See Figure.

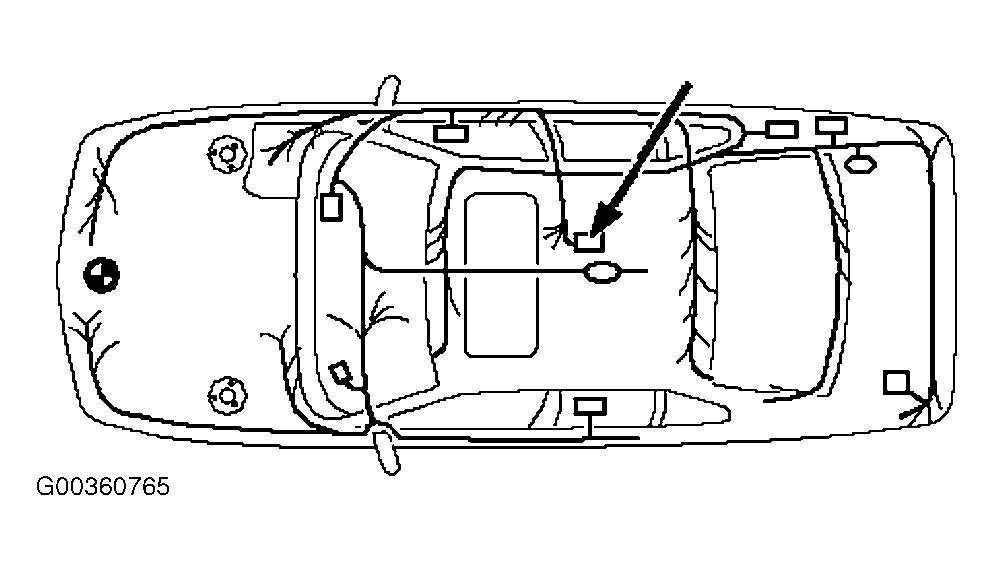

X218	Under rear of center console. See Figure.
X596	Under glove box. See Figure.

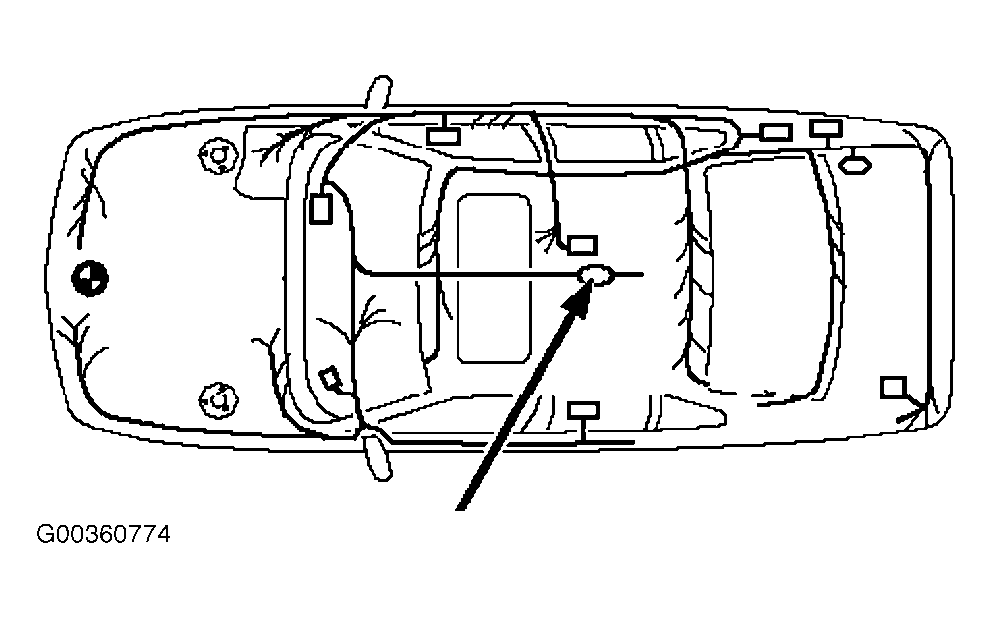

X704	Under rear of center console. See Figure.
