System Components

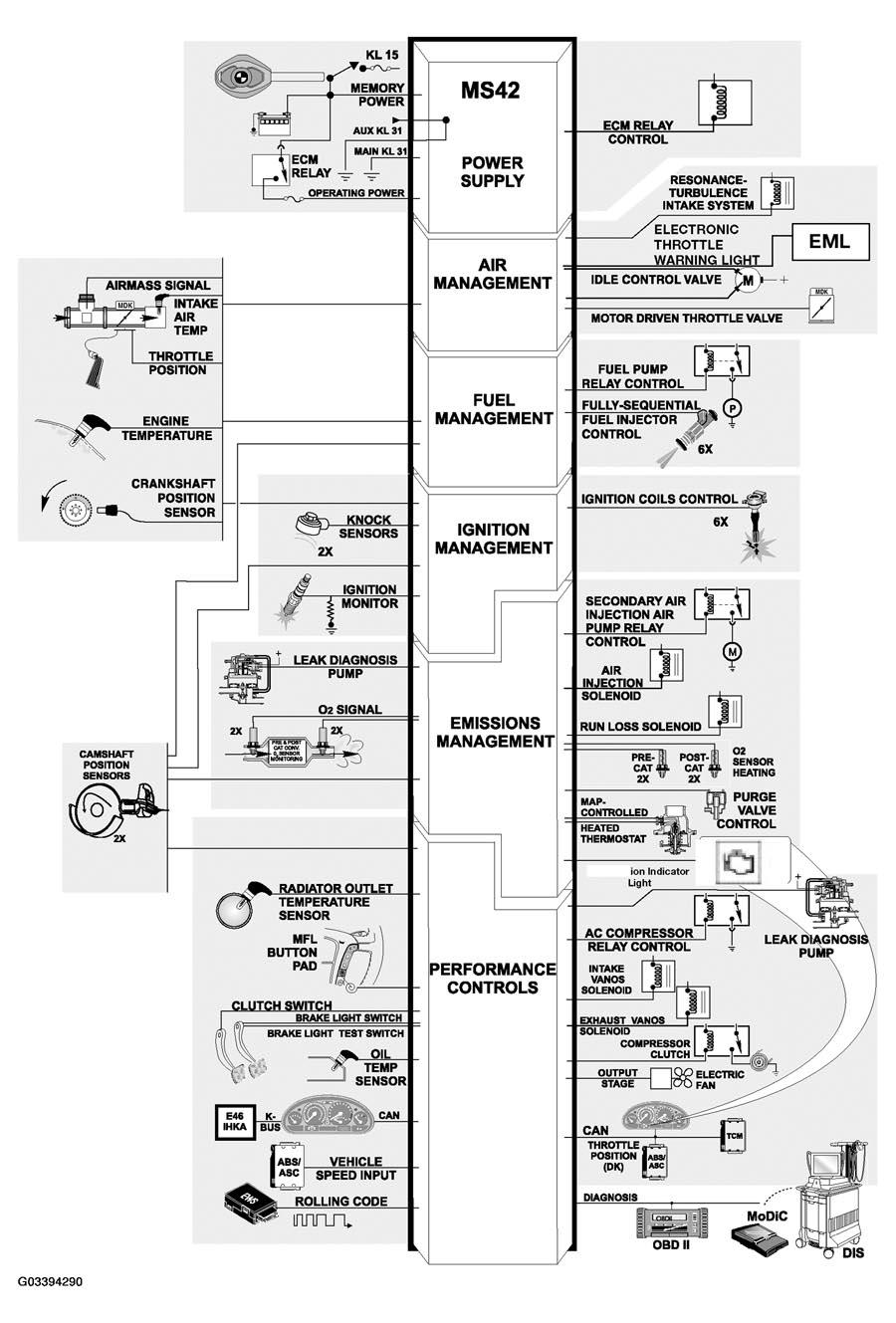

MS42/MS43 Engine Control Module: The Engine Control Module (ECM) features a single printed circuit board with two 32-bit microprocessors.
The task of the first processor is to control:
- Engine Load
- Electronic Throttle
- Idle Actuator
- Ignition
- Knock Control
The task of the second processor is to control:
- Air/Fuel Mixture
- Emission Control
- Misfire Detection
- Evaporative Leak Detection

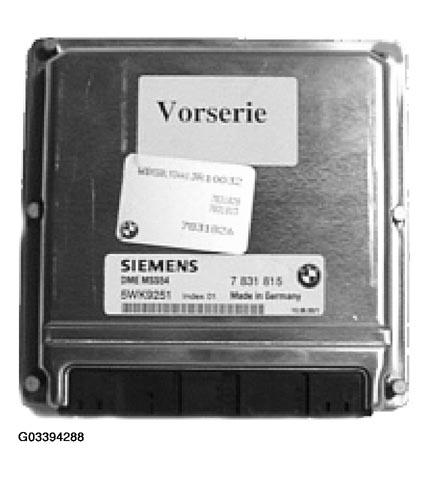

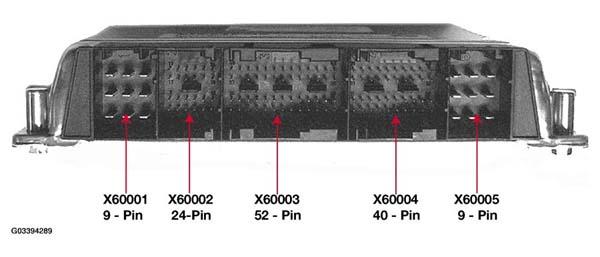

The 134 pin ECM is manufactured by Siemens to BMW specifications. The ECM is the SKE (standard shell construction) housing and uses 5 modular connectors. For testing, use the Universal Adapter Set (break-out box) Special Tool # 90 88 6 121 300.
