61 13... Repair wiring harness, DSC section
Read and comply with notes on HANDLING WIRING HARNESSES and cables.
Installation note:
Use suitable TOOL FOR REPAIR WIRING HARNESS .
Necessary preliminary tasks:
- Remove MICROFILTER HOUSING .

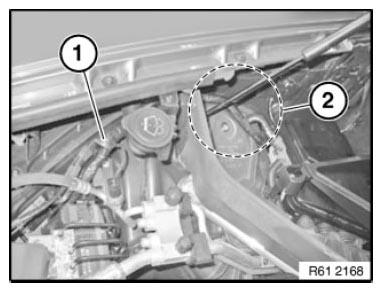

Perform repair wiring harness DSC (1) in area (2) as specified in wiring diagram.
Installation note:
Make sure repair wiring harness DSC (1) is routed without possibility of abrasions.
