Tools And Equipment: VANOS
The electrical/hydraulic function can be checked "statically" by using the adapter tools and shop supplied regulated compressed air.

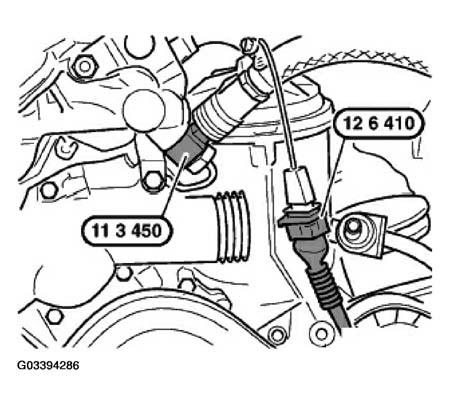

Special Tool # 90 88 6 113 450 adapts regulated compressed air to substitute for engine oil pressure required to move the VANOS piston.
Special Tool # 90 88 6 126 410 allows battery voltage and ground to activate the solenoid.
