1997 BMW 328is AutomaticFACTORY OEM SERVICE PROCEDURE

Component Locations

COMPONENT LOCATIONS

Component

Location

Power Window Control Module

Behind Glove Compartment

Power Window Motor

Behind Appropriate Door Panel

Power Window Motor Control Module

⁽¹⁾ Attached To Each Power Window Motor

Power Window Relay

⁽²⁾ In Relay Box Next To Steering Column

Power Window Switch

On Center Console

⁽¹⁾	On 2-door models, each power window motor has a control module attached to it. These control modules are not to be confused with power window control module, located behind glove box.

⁽²⁾	See Fig 1 .

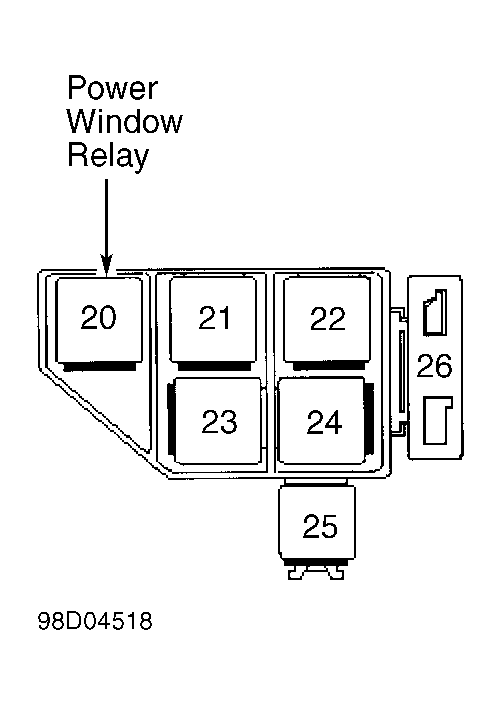

Fig 1: Identifying Power Window Relay

Courtesy of BMW OF NORTH AMERICA, INC.
