Variant Coding

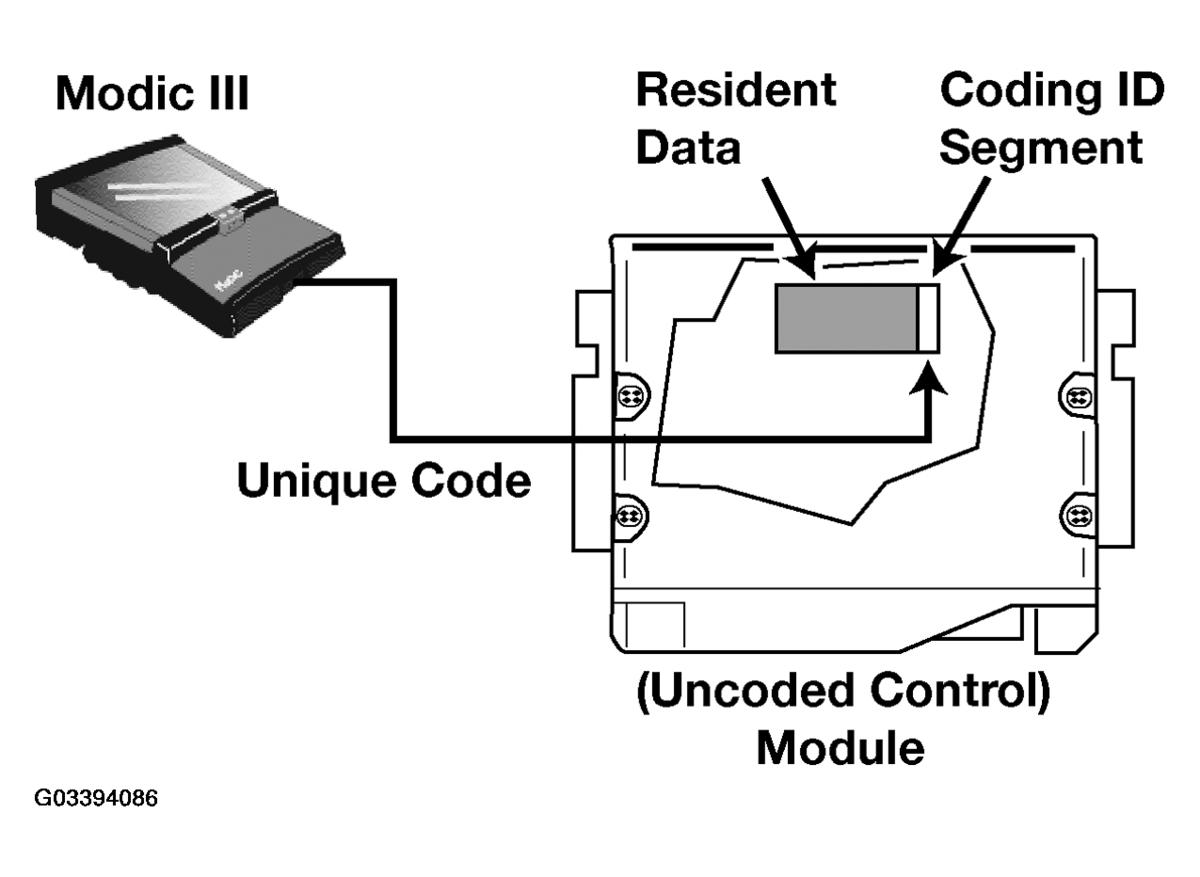

The ECM used in the M1.7.2 system is a codeable module that requires Variant Coding if it is replaced. The control module is programmed with "resident data" stored in the EPROM and Variant Coding simply means that one of the "data sets" will be activated for the engine/vehicle.
DME (ECM) Variant Coding is performed with the DIS/MoDIC using the latest software:
- DME Varient Coding uses a 4 Digit code to determine which of the internal maps (data sets) to utilize.
- The 4 digit code describes which maps to use.
- The proper variant code can be found on the cover of the old ECM or MoDIC variant coding software.
- The actual program software can be found for DME variant coding can be found only in DME Programing software.
- A codeable DME can only be coded 8 times.
