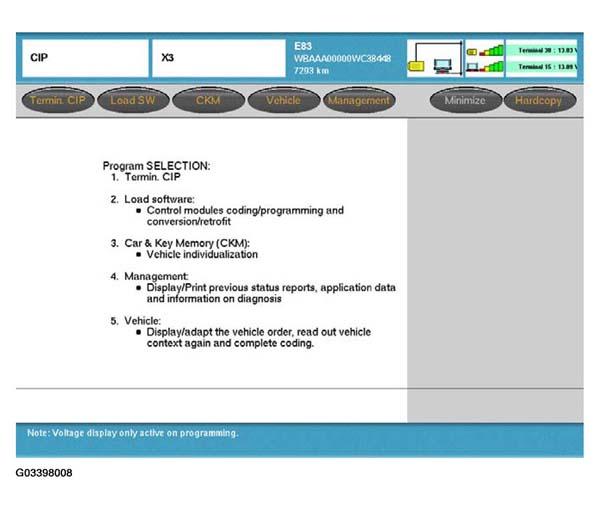

CIP Main Selection Screen
Selection of CIP functions/options:
Termin. CIP - End the CIP program and return to Progman home screen
Load SW - Load software function to be selected if:
- Control module has been replaced
- Retrofit process is to be carried out
- Vehicle software is to be updated
- Coding/programming of one or more module(s) is to be performed
CKM - Vehicle and Key Memory/Individualization allows various driver selectable features (such as drive way locking, seat memory, central locking/unlocking, daytime running lights etc.) to be coded to the vehicle or individual keys.
Management - Provides the ability to:
- display the current version of CIP installed
- print previously performed Service Measure Reports
- run a test on the software currently installed on system (SSS)
Vehicle - Allows access to:
- Vehicle Order
- Initialization
- Service Functions
- Complete vehicle coding
