1991 BMW M5FACTORY OEM SERVICE PROCEDURE
Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Electronic Control Unit | In E-Box. |
| ABS/ASC Electronic Control Unit | In E-Box. |
| A/C Compressor Control Unit | Under left kick panel. |
| Air Intake Control Unit. | In E-Box. |
| Anti-Theft Module | Below left rear seat. |

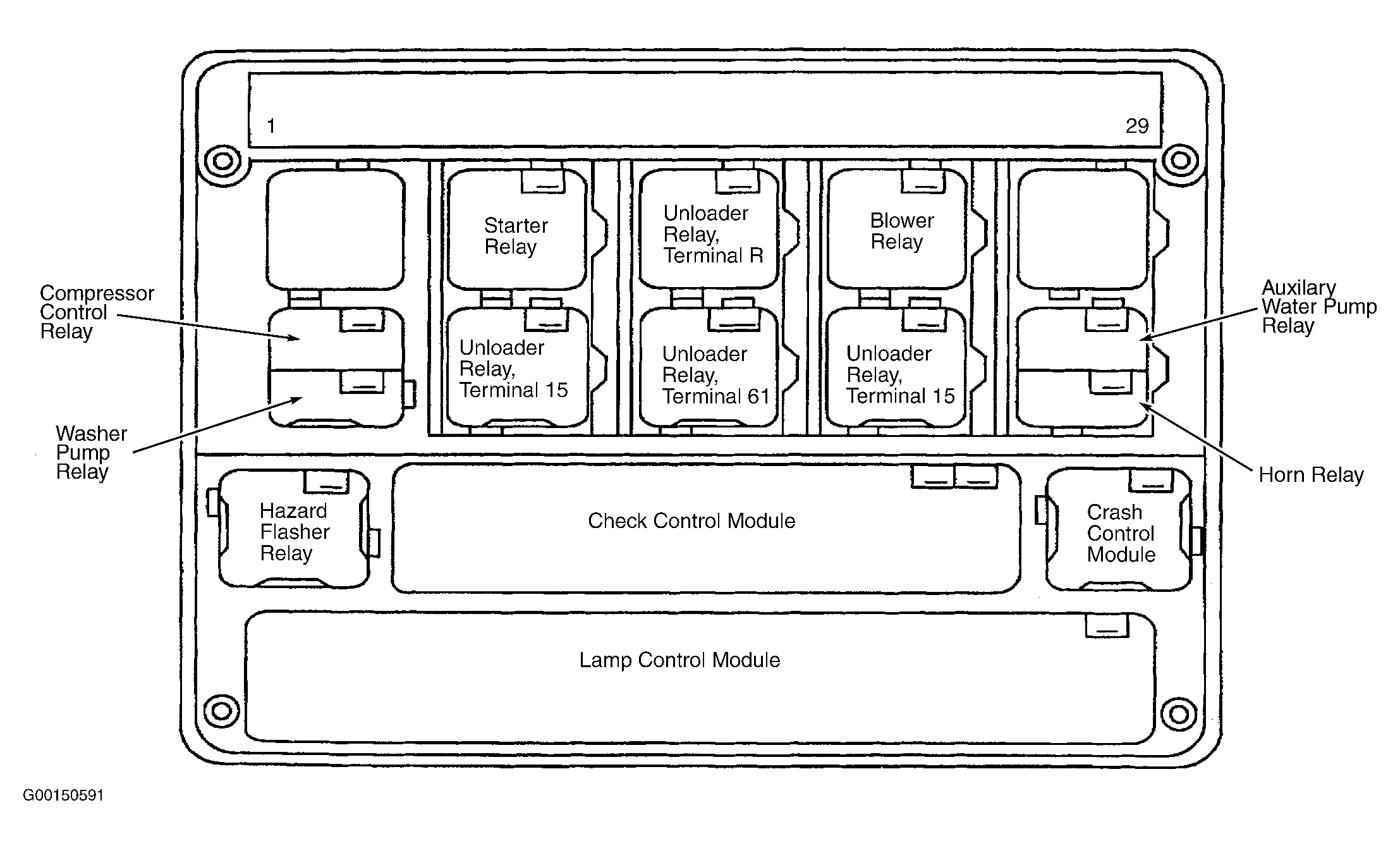

| Check Control Module | In front power distribution box. See Figure . |
| Chime Module | Under left side of dash. |
| Crash Control Unit | In front power distribution box. See Figure . |
| Cruise Control Module | In E-Box. |
| DME Control Unit | In E-Box. |
| EGS Control Unit | Under right kick panel. |
| EML Control Unit | In E-Box. |

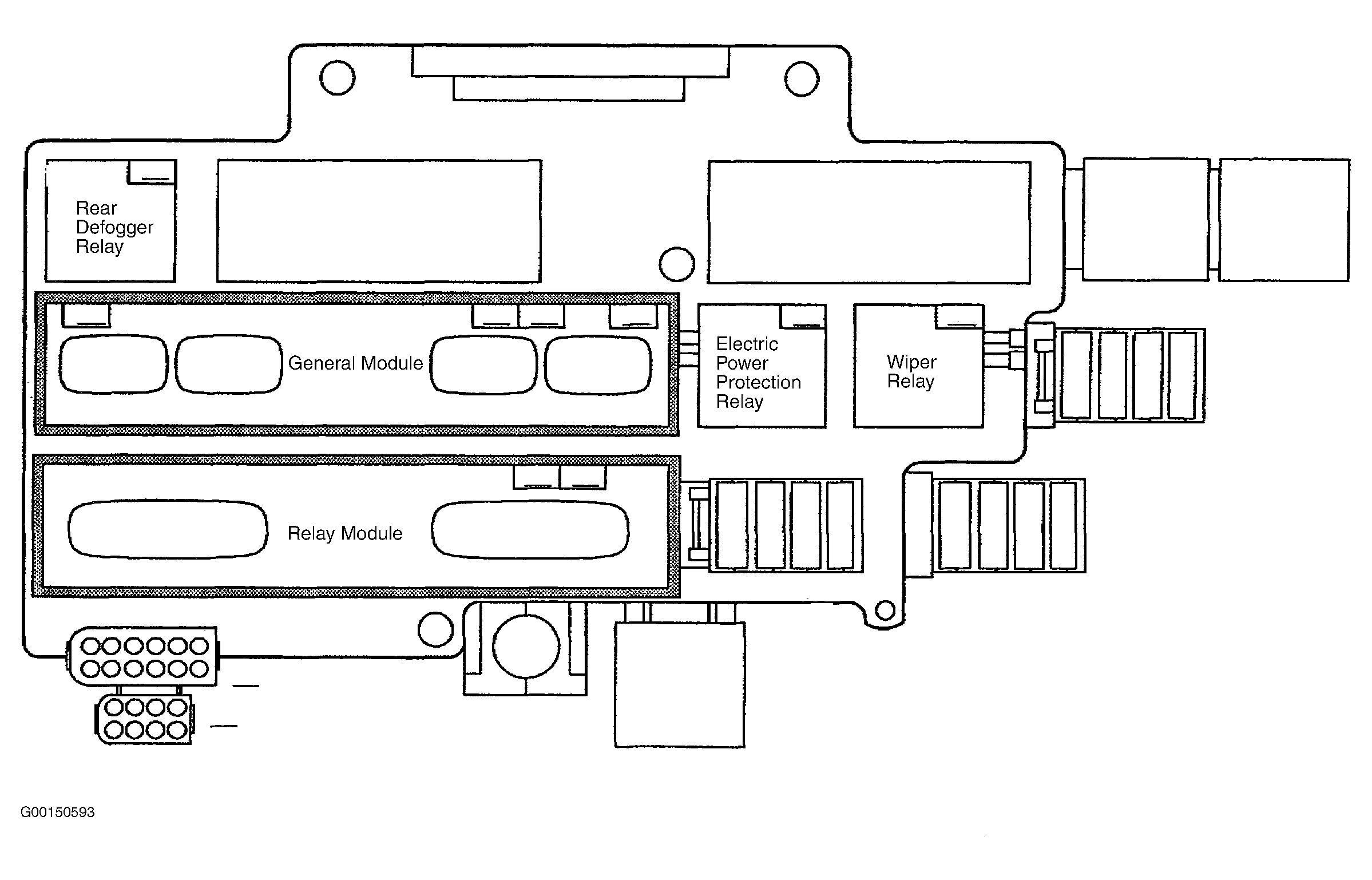

| General Module | In rear power distribution box. See Figure . |
| Infrared Locking Control Unit | In rear power distribution box. |
| Integrated Climate Regulation II Control Unit | Below center of dash. |
| Lamp Control Module | In front power distribution box. See Figure . |
| Memory Seats/Mirrors Control Unit | Under left front seat. |
| On-Board Computer | At center of dash, right side of radio. |
| Relay Module | In rear power distribution box. See Figure . |
| Servotronic Control Module | Inside left kick panel. |
| Supplemental Restraint System Diagnostic Module | Below left side of dash, at left side of steering column. |
| Wheel Camber Control Unit | Near rear differential. |
