1990 BMW M3FACTORY OEM SERVICE PROCEDURE
Transmission Oil Temperature Sensor: Notes

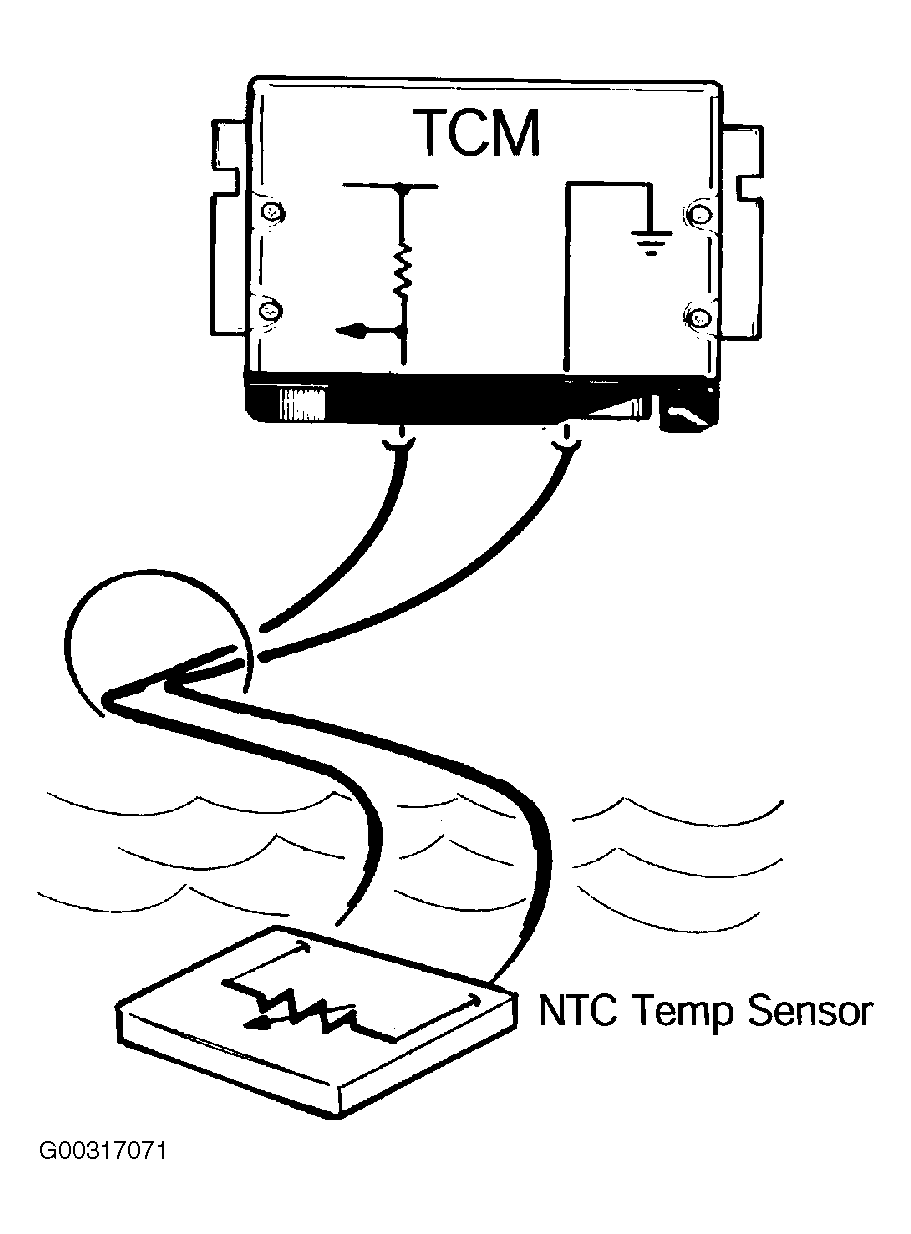

The TCM is provided with transmission oil temperature information via a temperature sensor. See Fig 1 . On most BMW transmissions, the sensor is an NTC element which is part of the transmission internal wiring harness.
