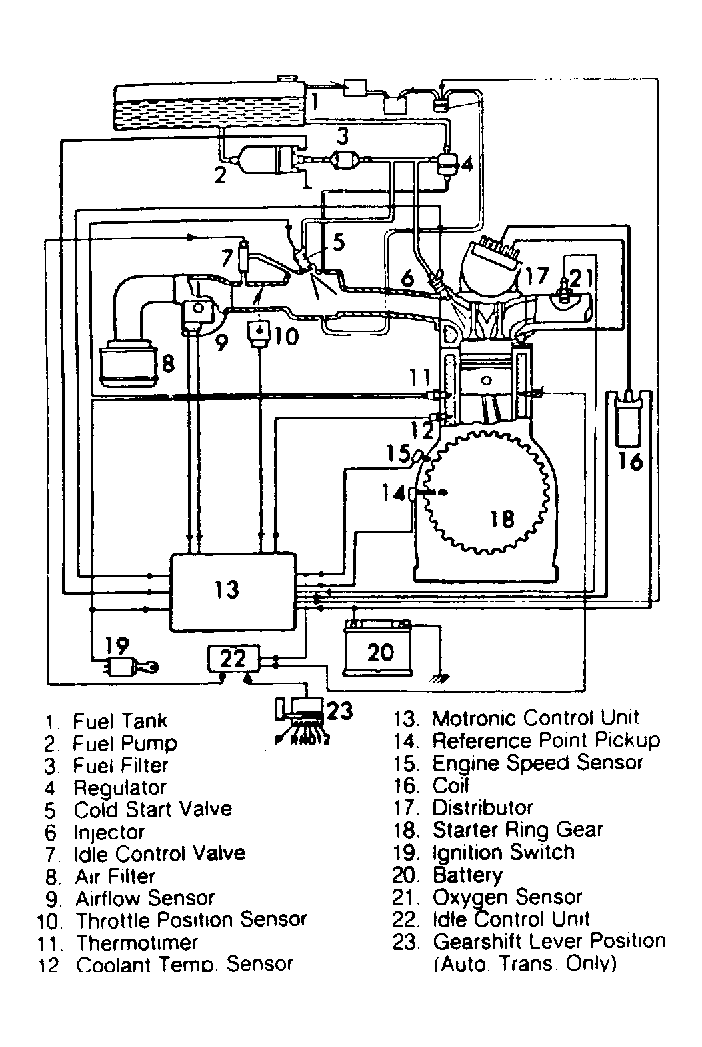

MOTRONIC CEC System: Description
Motronic Emission Control System is a microprocessor system that controls air/fuel mixture and exhaust emissions by adjusting fuel injection and ignition timing.
The Motronic Control Unit (MCU) is the microprocessor in which sensor inputs are received and processed. Based on the sensor inputs, MCU will send the correct output signals to adjust injector pulses and ignition timing. Various engine sensors supply the MCU with operating information. These include: airflow, air temperature, throttle position, coolant temperature, engine speed, crankshaft position and oxygen (O2) sensor.
The MCU is located inside (above) glove box.
