System Spark Test

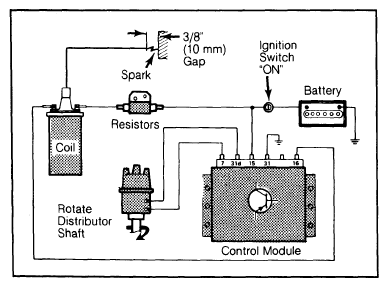

- If starter turns but engine will not start or if engine fails to develop sufficient power), hold distributor end of coil wire about 3/8" (10 mm) from engine block. Crank engine. See Fig 1.
Do not use this test on Mercedes-Benz models.
- If spark jumps gap, check distributor cap, rotor, cables and spark plugs. Be sure ignition timing and fuel system are OK. If no sparks occur, perform the following tests.
