Mixture Control Unit

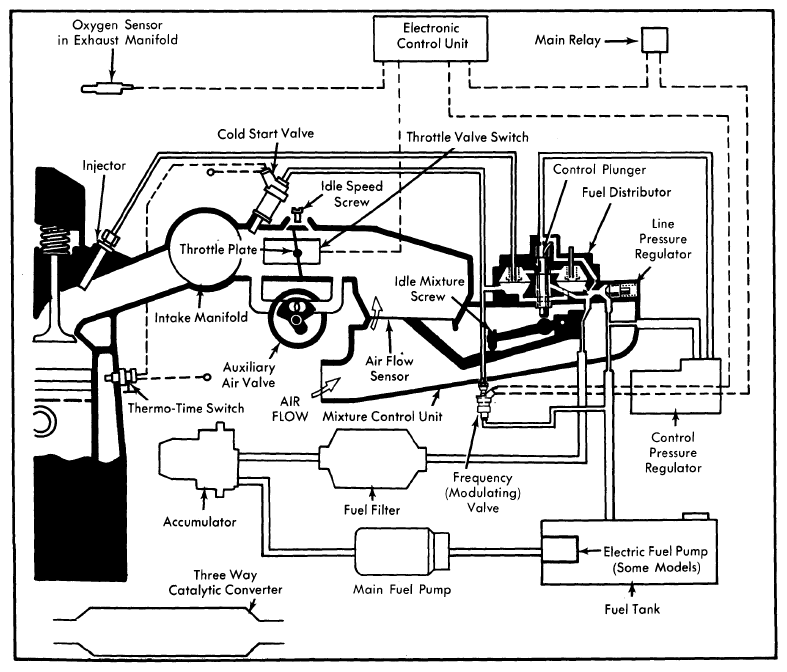

The air flow sensor contains a plate mounted on a hinged lever which moves in a cone shaped venturi. All engine air is drawn through this sensor. The plate moves as air passes through, pulling the hinged lever up or down. This raises or lowers a fuel control plunger in the fuel distributor, determining the amount of fuel to be injected into each cylinder. The movement of the plate is controlled by air flow, cone shape of venturi, a balance weight, and fuel pressure.
