Resistor Resistance Check

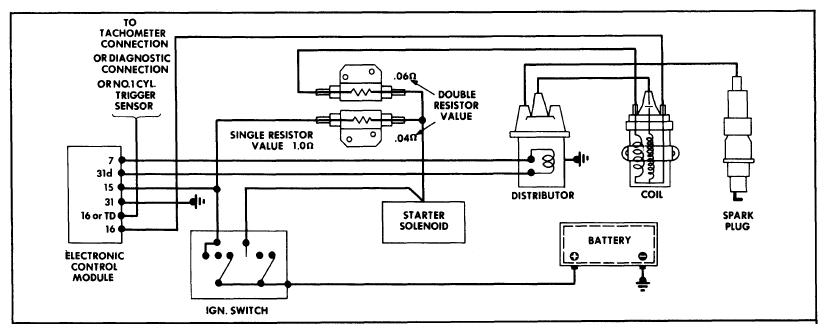

Using an ohmmeter set to low scale, check resistance of each resistor in primary circuit. See RESISTOR SPECIFICATIONS table . Most models use 2 ballast resistors. Some manufacturers use resistor wires instead of ballast resistors.
| Application | Resistance (Ohms) | |
|---|---|---|
| Audi | 1.0 | |
| BMW | 0.4-0.6 | |
| Fiat X1/9 & Strada | .85-.95 | |
| Mercedes-Benz | .35-.45 and.55-.65 | |
| Peugeot | 0.5 | |
| Porsche | ||
| 924 | 1.0 and 1.5 | |
| 928 | .35-.45 and.55-.65 | |
| Saab | ||
| Starting | 0.6 | |
| Running | 1.0 | |
| Volvo | 1.0 | |
