1978 BMW 633CSi Automatic TransFACTORY OEM SERVICE PROCEDURE

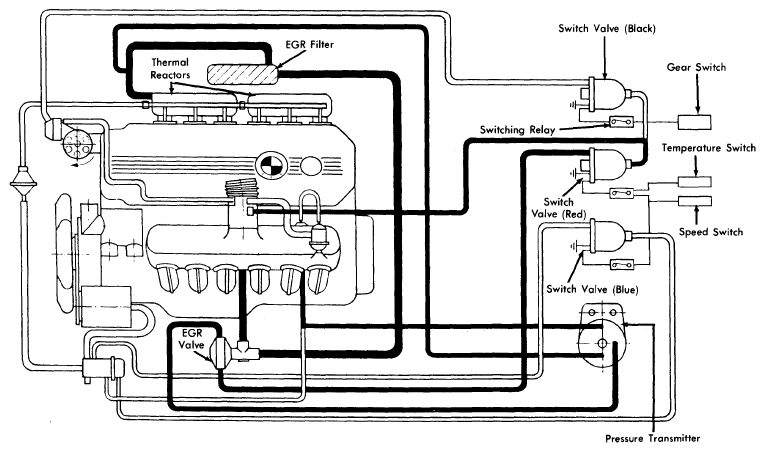

EGR System
- After 25, 000 miles an EGR service warning light will light up, to indicate that the filter of the EGR system should be replaced and the thermal reactor(s) should be inspected for cracks or other damage. After replacing filter and checking thermal reactor(s), the mileage interval switch must be reset.
- The switch is connected to speedometer cable, on left side engine carrier. Two contacts are located in the switch, one is marked "REAC" (reactor) and the other "EGR". The appropriate contact must be pushed inwards to extinguish the warning lamp and reset the mileage recorder to zero.
