Windshield Projection Head Up Display Control Module, Removing And Installing: Removing

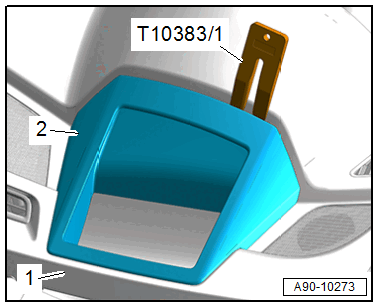

-- Press out the cover -2- from the instrument panel -1- using the Wedge Set: T10383 .
-- Cover the control module -2- with a soft towel.
-- Remove the windshield. Refer to WINDSHIELD, REMOVING AND INSTALLING .
There is a risk of destroying the windshield projection head up display control module.
- Only remove the designated bolts from the control module.
- Never remove the bolts for the housing upper section.

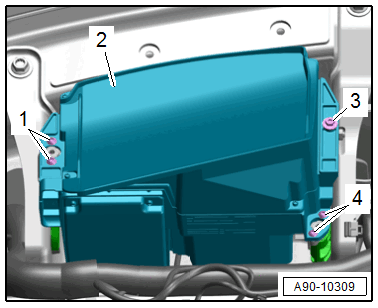

-- Remove the bolts -1, 3 and 4-.

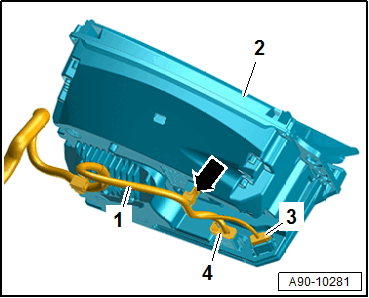

-- Lift the control module -2- out slightly and disconnect the connectors -3 and 4-.
-- Free up the wiring harness -1- -arrow-.
-- Remove the control module.
