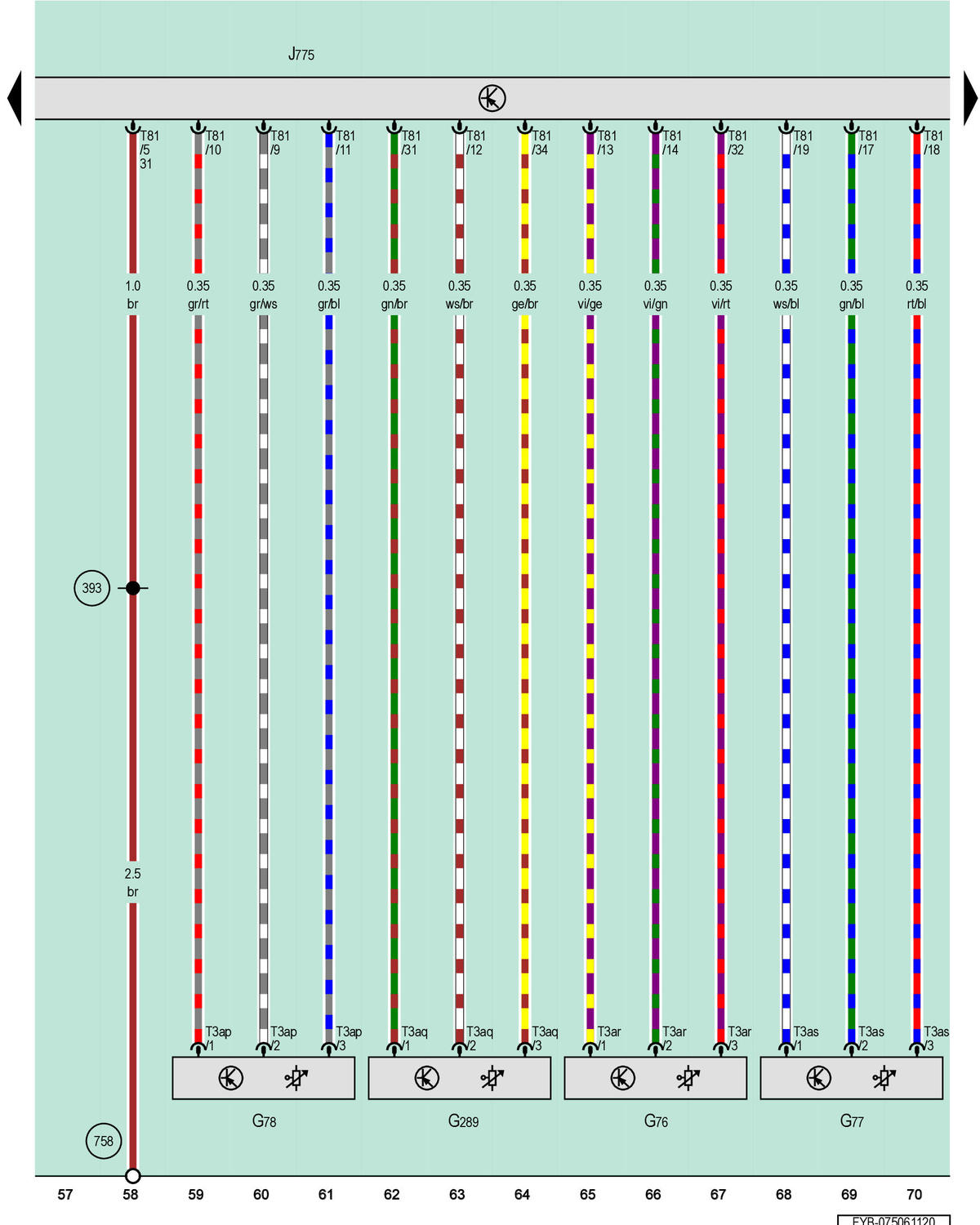

Left Rear Level Control System Sensor, Left Front Level Control System Sensor, Drivetrain Control Module
G76
Left Rear Level Control System Sensor
G77
Right Rear Level Control System Sensor
G78
Left Front Level Control System Sensor
G289
Right Front Level Control System Sensor
J775
Drivetrain Control Module
T3ap
3-Pin Connector, Green
T3aq
3-Pin Connector, Green
T3ar
3-Pin Connector, Black
T3as
3-Pin Connector, Black
T81
81-Pin Connector, Black
393
Ground Connection 28 (in Main Wiring Harness)
758
Ground Connection 3 on Center Tunnel
