Control Module, Installing On Hydraulic Unit

Special tools and workshop equipment required

• Torque Screwdriver:V.A.G 1624
  Fig 1: Identifying Torque Screwdriver VAG1624

  Courtesy of AUDI
• Use a commercially available socket, not illustrated
• ESD Work Surface:VAS 6613

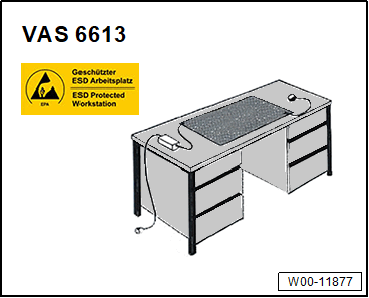

  Fig 2: ESD Work Surface

  Courtesy of AUDI

Procedure

• Use the complete repair kit when installing.
• Protect the ABS control module from bumps or impact. A control module that has fallen to the ground can no longer be used.

• The hydraulic unit -4- with the pump motor and the connector -3- faces down.

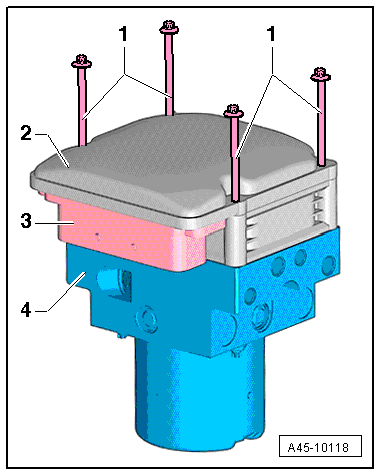

  Fig 3: Identifying Hydraulic Unit

  Courtesy of AUDI

-- Place the control module -2- carefully from above on the hydraulic unit without tilting.

-- Install the new bolts -1- by hand until the control module touches the hydraulic unit evenly.

If the bolts for the control module on the hydraulic unit are difficult to install or cannot be tightened to the tightening specification, then the hydraulic unit must be replaced.

-- Tighten the bolts in two stages in a diagonal sequence.

-- Install the hydraulic control unit. Refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING .

-- After replacing the ABS Control Module -J104-, select the "Control module, replacing". Refer to DIAGNOSTIC ENTRIES .

Tightening Specifications

• Refer to OVERVIEW - CONTROL MODULE AND HYDRAULIC UNIT
