2023 Audi SQ5 Sportback PremiumFACTORY OEM SERVICE PROCEDURE
ABS Control Module -J104

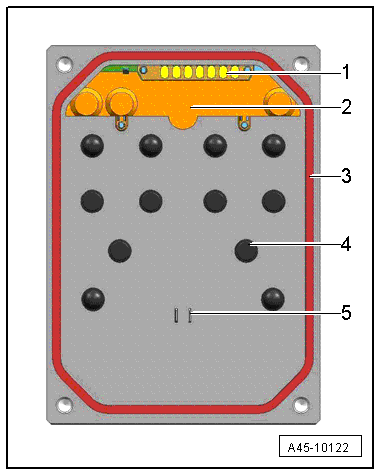

Fig 1: Identifying Pressure Sensor Contact, Pressure Sensor, Seal, Valve Bodies And Pump Motor Contact
- Pressure Sensor Contact
- Do not touch the contacts
- The illustration depends on the model
- Pressure Sensor
- Must not be changed or damaged
- Cannot be replaced
- The illustration depends on the model
- Seal
- Do not remove or lift
- Cannot be replaced separately
- Valve Body
- Must not be damaged
- Do not use any tools
- Pump Motor Contact
- Must not be damaged
